PWM-200
LED power supplies with PWM dimming function: PWM-200-12, PWM-200-24, PWM-200-36, PWM-200-48
- wide input voltage range: 100 ~ 305VAC, 142 ~ 431VDC
- constant output voltage regardless of load
- housing with IP67 class
- available version with DALI interface (PWM-200-12DA2)
- short-circuit, overload, overvoltage and thermal protection
- no-load power consumption <0.5W
- active PFC system
- class II insulation
- 3 in 1 dimming function (0 ~ 10VDC, PWM, resistance)
- open air cooling
- working temperature from -40 to + 85 ° C
- compliance with a number of standards and certificates
- efficiency up to 94%
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-200-12LED driver 180W 12V 15AIn stockWarranty: €50.60€62.24Login to check your price PWM-200-12LED driver 180W 12V 15AAvailability:In stockNet price:€50.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-200-24LED driver 200W 24V 8.3AIn stockWarranty: €50.60€62.24Login to check your price PWM-200-24LED driver 200W 24V 8.3AAvailability:In stockNet price:€50.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-200-36LED driver 200W 36V 5.55AOut of stock Warranty: €50.60€62.24Login to check your price PWM-200-36LED driver 200W 36V 5.55AAvailability: Out of stockNet price:€50.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-200-48LED driver 200W 48V 4.17AIn stockWarranty: €50.60€62.24Login to check your price PWM-200-48LED driver 200W 48V 4.17AAvailability:In stockNet price:€50.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-200-12DA2LED driver 180W 12V 15AIn stockWarranty: €55.70€68.51Login to check your price PWM-200-12DA2LED driver 180W 12V 15AAvailability:In stockNet price:€55.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-200-24DA2LED driver 200W 24V 8.3AIn stockWarranty: €55.70€68.51Login to check your price PWM-200-24DA2LED driver 200W 24V 8.3AAvailability:In stockNet price:€55.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-200-36DA2LED driver 200W 36V 5.55AOut of stock Warranty: €55.70€68.51Login to check your price PWM-200-36DA2LED driver 200W 36V 5.55AAvailability: Out of stockNet price:€55.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWM-200-48DA2LED driver 200W 48V 4.17AIn stockWarranty: €55.70€68.51Login to check your price PWM-200-48DA2LED driver 200W 48V 4.17AAvailability:In stockNet price:€55.70
Description

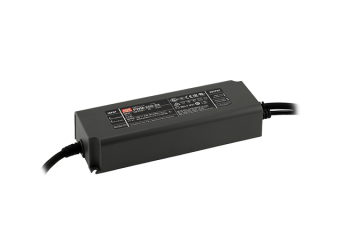

PWM-200 is a constant voltage LED power supply with a power of 200W and a square wave at the output. Thanks to the rectangular signal at the output, it is possible to use PWM-200 power supplies for various types of LED strips, ensuring their appropriate color temperature and brightness. Thanks to the high efficiency of the device (up to 94%) and the use of convection cooling, the PWM-200 can boast an IP67 tightness class, which makes it ideal for applications in difficult conditions.
The PWM series power supplies have a dimming function that allows you to adjust the current efficiency by means of 0-10VDC voltage, the width of the pulse filling (PWM), or an external resistor. In addition, models marked "DA2" are DALI-compliant.
PWM-200 is designed to power a wide range of lighting devices, including:
-
- LED panels
- LED downlights
- decorative LED lighting architectural lighting
- billboards and illuminated advertising
Technical Specification
- PWM-200: LED power supplies with PWM dimming function - SPECIFICATION
| Model | Output | Tolerance | Noise | Efficiency | Wire length | Dimensions |
| PWM-200-12 | 12V, 0~15A | +/-4% | 150mV | 92% | 300mm | 195x68x39.5mm |
| PWM-200-24 | 24V, 0~8.3A | +/-4% | 150mV | 93% | 300mm | 195x68x39.5mm |
| PWM-200-36 | 36V, 0~5.55A | +/-4% | 200mV | 94% | 300mm | 195x68x39.5mm |
| PWM-200-48 | 48V, 0~4.17A | +/-4% | 250mV | 94% | 300mm | 195x68x39.5mm |
