Manufacturer: MEAN WELL
- Robust, metal housing
- Active PFC
- No load power consumption <0.5W
- Housing with IP67 protection
- 3in1 dimming option ("B" version)
- SELV compliant
- Power supply with led out protective conductor
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €13.40 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-20-LLED driver 18.9W 32.4~54V 0.35AOut of stock Warranty: €13.40€16.48Login to check your price XLG-20-LLED driver 18.9W 32.4~54V 0.35AAvailability: Out of stockNet price:€13.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-20-MLED driver 21W 25.2~42V 0.5AOut of stock Warranty: €13.40€16.48Login to check your price XLG-20-MLED driver 21W 25.2~42V 0.5AAvailability: Out of stockNet price:€13.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-20-HLED driver 21W 18~30V 0.7AOut of stock Warranty: €13.40€16.48Login to check your price XLG-20-HLED driver 21W 18~30V 0.7AAvailability: Out of stockNet price:€13.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-20-L-BLED driver 18.9W 32.4~54V 0.35AOut of stock Warranty: €15.50€19.07Login to check your price XLG-20-L-BLED driver 18.9W 32.4~54V 0.35AAvailability: Out of stockNet price:€15.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-20-H-BLED driver 21W 18~30V 0.7AOut of stock Warranty: €15.50€19.07Login to check your price XLG-20-H-BLED driver 21W 18~30V 0.7AAvailability: Out of stockNet price:€15.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-20-M-BLED driver 21W 25.2~42V 0.5AOut of stock Warranty: €15.50€19.07Login to check your price XLG-20-M-BLED driver 21W 25.2~42V 0.5AAvailability: Out of stockNet price:€15.50
Description

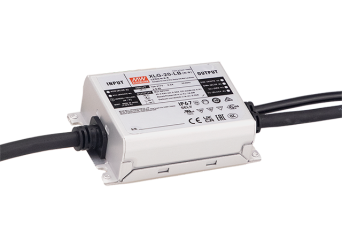

XLG-20 is another model in the family of XLG DC power supplies from MEAN WELL. The XLG-20 is a constant current structure providing an output current of 350mA, 500mA, 700mA. The device is distinguished by a metal housing with IP67 tightness, built-in active PFC and a wide operating temperature range of -40 + 80 degrees.
In the 'B' version, the power supply has a 3in1 dimming option: the adjustment can be made with a 1 ~ 10VDC signal, PWM signal or external resistance.
The device is available in 3 versions with different output currents:
- XLG-20-L: 32.4 ~ 54V, 350mA
- XLG-20-M: 25.2 ~ 42V, 500mA
- XLG-20-H: 18 ~ 30V, 700mA
Technical Specification
- XLG-20: Constant current LED power supplies 18~21W specification
| Model | Output | Tolerance | Efficiency | Dimensions |
| XLG-20-L | 32.4 ~ 54V, 350mA | +/-8% | 89% | 95x63x30mm |
| XLG-20-M | 25.2 ~ 42V, 500mA |
+/-8% | 88.5% | 95x63x30mm |
| XLG-20-H | 18 ~ 30V, 700mA |
+/-8% | 88% | 95x63x30mm |
