- Wide input voltage range of 90 ~ 305VAC
- Built-in PFC function
- Admissible working temperature: -40 ~ + 80 ° C
- Round housing with IP67 tightness
- In version A: regulation of the output current with a potentiometer
- For AB version: 3 in 1 dimming function (0 ~ 10VDC, PWM, resistance)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXBG-240-ALED driver 240W 30~60V 2.85~5.7AOut of stock Warranty: €54.00€66.42Login to check your price XBG-240-ALED driver 240W 30~60V 2.85~5.7AAvailability: Out of stockNet price:€54.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXBG-240-ABLED driver 240W 30~60V 2.85~5.7AOut of stock Warranty: €59.10€72.69Login to check your price XBG-240-ABLED driver 240W 30~60V 2.85~5.7AAvailability: Out of stockNet price:€59.10
Description

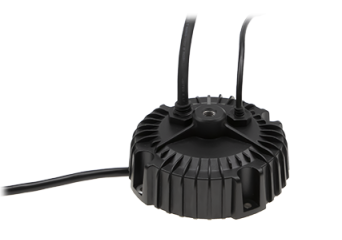

XBG-240 is a constant power LED power supply with a rated power of 240W and an output voltage of up to 60V. The device offers a wide range of input voltage (90 ~ 305VAC) and current up to 5700mA. Thanks to the high efficiency of up to 93% and low heat losses, the power supply can operate in the temperature range from -40 to + 80 ° C. Thanks to the use of cooling with an open air circulation, the casing has a tightness class of IP67. XBG-240 in version A has the possibility of adjusting the output current with a potentiometer on the housing. The AB version is equipped with a dimming function with 3 different methods: 0-10VDC signal, PWM signal or resistor.
Application examples:
- High-bay luminaires
- Architectural floodlights
- Lighting of industrial halls
Technical Specification
- XBG-240: Constant power LED power supply - DETAILS
| Model | Output | Tolerance | Efficiency | Dimensions |
| XBG-240 | 30~60V, 2000~5700mA | +/-5% | 93% | 176x65mm |
| XBG-240-A | 30~60V, 2000~5700mA | +/-5% | 93% | 176x65mm |
| XBG-240-AB | 30~60V, 2000~5700mA | +/-5% | 93% | 176x65mm |
