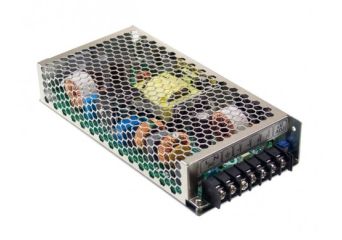

MSP-200
Enclosed medical power supply
- Built-in medical power supply
- input voltage 85-264VAC, 120-370VDC
- compliance with medical standards (MOOP level)
- low leakage current ≤300μA
- withstand overvoltage of 300VAC for 5 seconds
- built-in active PFC function
- protections: short circuit, overvoltage, overload, thermal
- the ability to adjust the output voltage in the range of +/- 15%
- built-in dc current limitation at the output
- built-in output voltage drop compensation function
- low power consumption in no-load condition <0.5W
- working temperature -40 + 70 ° C
- remote on / off
- 1U low profile
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €78.80 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-200-3.3medical switching power supply 200W 3.3V 40AOut of stock Warranty: €78.80€96.92Login to check your price MSP-200-3.3medical switching power supply 200W 3.3V 40AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-200-5medical switching power supply 200W 5V 35AOut of stock Warranty: €78.80€96.92Login to check your price MSP-200-5medical switching power supply 200W 5V 35AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-200-7.5medical switching power supply 200W 7.5V 26.7AOut of stock Warranty: €78.80€96.92Login to check your price MSP-200-7.5medical switching power supply 200W 7.5V 26.7AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-200-12medical switching power supply 200W 12V 16.7AOut of stock Warranty: €78.80€96.92Login to check your price MSP-200-12medical switching power supply 200W 12V 16.7AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-200-15medical switching power supply 200W 15V 13.4AOut of stock Warranty: €78.80€96.92Login to check your price MSP-200-15medical switching power supply 200W 15V 13.4AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-200-24medical switching power supply 200W 24V 8.4AOut of stock Warranty: €78.80€96.92Login to check your price MSP-200-24medical switching power supply 200W 24V 8.4AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-200-36medical switching power supply 200W 36V 5.7AOut of stock Warranty: €78.80€96.92Login to check your price MSP-200-36medical switching power supply 200W 36V 5.7AAvailability: Out of stockNet price:€78.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMSP-200-48medical switching power supply 200W 48V 4.3AOut of stock Warranty: €78.80€96.92Login to check your price MSP-200-48medical switching power supply 200W 48V 4.3AAvailability: Out of stockNet price:€78.80
Description
The MEAN WELL MSP-200 medical power supply is successfully used in applications using medical equipment.
Technical Specification
- MSP-200: Enclosed medical power supply 132~206W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| MSP-200-3.3 | 3.3V, 0~40A | +/-2% | 80mV | 80% | 199x98x38mm |
| MSP-200-5 | 5V, 0~35A | +/-2.5% | 90mV | 84% | 199x98x38mm |
| MSP-200-7.5 | 7.5V, 0~26.7A | +/-2% | 100mV | 86% | 199x98x38mm |
| MSP-200-12 | 12V, 0~16.7A | +/-1% | 120mV | 88% | 199x98x38mm |
| MSP-200-15 | 15V, 0~13.4A | +/-1% | 150mV | 88% | 199x98x38mm |
| MSP-200-24 | 24V, 0~8.4A | +/-1% | 150mV | 88% | 199x98x38mm |
| MSP-200-36 | 27V, 0~5.7A | +/-1% | 250mV | 89% | 199x98x38mm |
| MSP-200-48 | 48V, 0~4.3A | +/-1% | 250mV | 90% | 199x98x38mm |
