Manufacturer: MEAN WELL
- Input voltage 85-264VAC, 254-370VDC
- Built-in active PFC function
- High efficiency up to 94.5%
- Forced cooling circuit with built-in fans
- Current / voltage regulation
- Parallel operation (4 + 1) up to 16000W
- PMBus, CANBus function - optional
- built-in protections: short-circuit, overload, overvoltage, temperature, fan
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €644.40 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
DPU-3200
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDPU-3200-24switching power supply 3192W 24V 133AIn stockWarranty: €644.40€792.61Login to check your price DPU-3200-24switching power supply 3192W 24V 133AAvailability:In stockNet price:€644.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDPU-3200-48switching power supply 3216W 48V 67AIn stockWarranty: €644.40€792.61Login to check your price DPU-3200-48switching power supply 3216W 48V 67AAvailability:In stockNet price:€644.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDPU-3200-48CANswitching power supply 3216W 48V 67AOut of stock Warranty: €671.80€826.31Login to check your price DPU-3200-48CANswitching power supply 3216W 48V 67AAvailability: Out of stockNet price:€671.80
Description

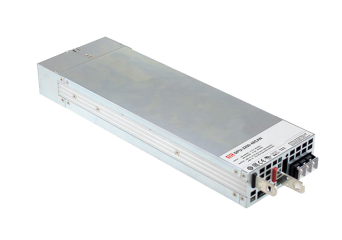

The DPU-3200 is a 3.2 kW single-output AC / DC power supply in a low-profile 1U housing with a high power density of up to 37 W / inch. Each model is cooled by a thermostatically controlled fan. In addition, the DPU-3200 offers great design flexibility by equipping with various built-in functions such as programming outputs, active current sharing, ON-OFF remote control, auxiliary power, etc.
Technical Specification
- DPU-3200: Enclosed power supply 3192-3216W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| DPU-3200-24 | 24V, 0~133A | +/-1% | 300mV | 93,5% | 325.8x107x41mm |
| DPU-3200-48 | 48V, 0~67A | +/-1% | 480mV | 94,5% | 325.8x107x41mm |
