OWA-200E
IP67 AC power supplies: OWA-200E-12, OWA-200E-20, OWA-200E-24, OWA-200E-36, OWA-200E-42, OWA-200E-48, OWA-200E-54
- Wide input voltage range: 180 ~ 264VAC, 254 ~ 370VDC
- Protection class II
- IP67 tight housing
- PFC function active
- Efficiency up to 94%
- No-load power consumption <0.15W
- Cooling with open air circulation
- short-circuit, overload, overvoltage and thermal protection
- working temperature -40 ~ + 70 ° C
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
OWA-200E
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOWA-200E-12LED driver 180W 12V 15AOut of stock Warranty: €53.80€66.17Login to check your price OWA-200E-12LED driver 180W 12V 15AAvailability: Out of stockNet price:€53.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOWA-200E-20LED driver 200W 20V 10AOut of stock Warranty: €53.80€66.17Login to check your price OWA-200E-20LED driver 200W 20V 10AAvailability: Out of stockNet price:€53.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOWA-200E-24LED driver 200W 24V 8.3AIn stockWarranty: €53.80€66.17Login to check your price OWA-200E-24LED driver 200W 24V 8.3AAvailability:In stockNet price:€53.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOWA-200E-36LED driver 200W 36V 5.55AOut of stock Warranty: €53.80€66.17Login to check your price OWA-200E-36LED driver 200W 36V 5.55AAvailability: Out of stockNet price:€53.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOWA-200E-42LED driver 200W 42V 4.75AOut of stock Warranty: €53.80€66.17Login to check your price OWA-200E-42LED driver 200W 42V 4.75AAvailability: Out of stockNet price:€53.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOWA-200E-48LED driver 200W 48V 4.17AOut of stock Warranty: €53.80€66.17Login to check your price OWA-200E-48LED driver 200W 48V 4.17AAvailability: Out of stockNet price:€53.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOWA-200E-54LED driver 200W 54V 3.71AOut of stock Warranty: €53.80€66.17Login to check your price OWA-200E-54LED driver 200W 54V 3.71AAvailability: Out of stockNet price:€53.80
Description

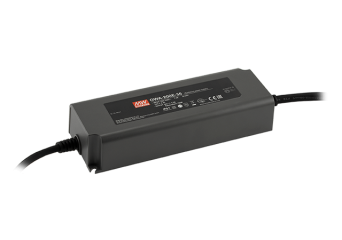

OWA-200E is a universal AC / DC power supply with a power of 200W and protection class II. Durable, compact housing that meets the IP67 standard allows the power supply to be used in difficult and humid environmental conditions. Thanks to the high efficiency of the device and the use of convection cooling, the device can operate at temperatures from -40 to + 70 ° C. The OWA-200 power supply complies with a number of standards and certificates, such as: BS EN / EN61558-2-16 or BS EN / EN60335-1.
The device will be used, for example, in industrial solutions, powering household appliances, building automation, small device charging stations.
Technical Specification
- OWA-200E: IP67 AC power supplies 180~200W - SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Wydajnośc | Cable lenght | Dimensions |
| OWA-200E-12 | 12V, 0~15A | +/-5% | 150mV | 91% | 1500 / 1000mm | 195x68x39.5mm |
| OWA-200E-20 | 20V, 0~10A | +/-4% | 150mV | 92.5% | 1500 / 1000mm | 195x68x39.5mm |
| OWA-200E-24 | 24V, 0~8.3A | +/-4% | 150mV | 93% | 1500 / 1000mm | 195x68x39.5mm |
| OWA-200E-36 | 36V, 0~5.55A | +/-3% | 200mV | 94% | 1500 / 1000mm | 195x68x39.5mm |
| OWA-200E-42 | 42V, 0~4.75A | +/-3% | 250mV | 94% | 1500 / 1000mm | 195x68x39.5mm |
| OWA-200E-48 | 48V, 0~4.17A | +/-3% | 250mV | 94% | 1500 / 1000mm | 195x68x39.5mm |
| OWA-200E-54 | 54V, 0~3.71A | +/-3% | 350mV | 94% | 1500 / 1000mm | 195x68x39.5mm |
