Manufacturer: MEAN WELL
- wide input voltage range 90-264VAC
- no-load power consumption <0.075W
- compact sizes
- compliant with EU ErP standard
- protections: short-circuit, overvoltage and overload
- operating temperature -20 ~ +70°C
- compliance with many standards and certificates
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Price from €14.30 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSGAS15B05-P1Jdesktop power supply 15W 5V 2.4AOut of stock Warranty: €14.30€17.59Login to check your price SGAS15B05-P1Jdesktop power supply 15W 5V 2.4AAvailability: Out of stockNet price:€14.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSGAS15B09-P1Jdesktop power supply 15W 9V 1.66AOut of stock Warranty: €14.30€17.59Login to check your price SGAS15B09-P1Jdesktop power supply 15W 9V 1.66AAvailability: Out of stockNet price:€14.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSGAS15B12-P1Jdesktop power supply 15W 12V 1.25AOut of stock Warranty: €14.30€17.59Login to check your price SGAS15B12-P1Jdesktop power supply 15W 12V 1.25AAvailability: Out of stockNet price:€14.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSGAS15B15-P1Jdesktop power supply 15W 15V 1AOut of stock Warranty: €14.30€17.59Login to check your price SGAS15B15-P1Jdesktop power supply 15W 15V 1AAvailability: Out of stockNet price:€14.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSGAS15B24-P1Jdesktop power supply 15W 24V 0.625AOut of stock Warranty: €14.30€17.59Login to check your price SGAS15B24-P1Jdesktop power supply 15W 24V 0.625AAvailability: Out of stockNet price:€14.30
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug without FG + IEC320-C7 INLETIn stockWarranty: €2.40€2.95Login to check your price 2-pin EU plug without FG + IEC320-C7 INLETAvailability:In stockNet price:€2.40
Description

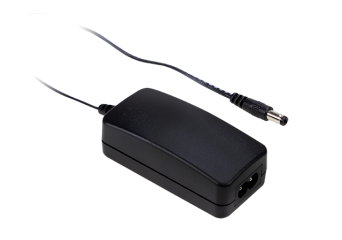

The SGAA15B MEAN WELL power supply has an output power of 15W. In addition, the power supply is compliant with energy efficiency level VI, a wide range of input voltages and a 3-year warranty.
Technical Specification
- SGAS15B: 15W desktop power supply (SPECIFICATION)
Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
SGAS15B05-P1J | 5V, 2.4A | +/-5% | 80mV | 79% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
SGAS15B09-P1J | 9V, 1.66A | +/-5% | 80mV | 84% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
SGAS15B12-P1J | 12V, 1.25A | +/-3% | 80mV | 85% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
SGAS15B15-P1J | 15V, 1A | +/-3% | 80mV | 85% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
SGAS15B24-P1J | 24V, 0.625A | +/-2% | 100mV | 86% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
