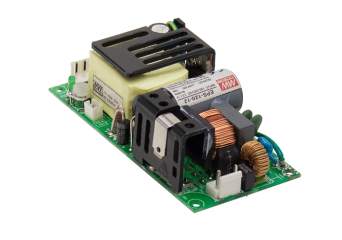

EPS-120
Single-output power supplies of PCB Open Frame type: EPS-120-12, EPS-120-15, EPS-120-24, EPS-120-27, EPS-120-48
- input voltage 80-264VAC, 113-370VDC
- low power consumption in no-load condition <0.3W
- efficiency up to 91%
- protections: short circuit, overvoltage and overload protection
- regulation of the output voltage in the range of +/- 10%
- 84W power with convection cooling
- 120W power with external fan cooling
- ability to work at heights up to 5000m
- working temperature from -30 ~ + 70 ° C
- compliance with many standards and certificates
- LED operation signaling
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €19.20 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPS-120-12open frame power supply 120W 12V 10AOut of stock Warranty: €19.20€23.62Login to check your price EPS-120-12open frame power supply 120W 12V 10AAvailability: Out of stockNet price:€19.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPS-120-15open frame power supply 120W 15V 8AOut of stock Warranty: €19.20€23.62Login to check your price EPS-120-15open frame power supply 120W 15V 8AAvailability: Out of stockNet price:€19.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPS-120-24open frame power supply 120W 24V 5AOut of stock Warranty: €19.20€23.62Login to check your price EPS-120-24open frame power supply 120W 24V 5AAvailability: Out of stockNet price:€19.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPS-120-27open frame power supply 120W 27V 4.5AOut of stock Warranty: €19.20€23.62Login to check your price EPS-120-27open frame power supply 120W 27V 4.5AAvailability: Out of stockNet price:€19.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEPS-120-48open frame power supply 120W 48V 2.5AIn stockWarranty: €19.20€23.62Login to check your price EPS-120-48open frame power supply 120W 48V 2.5AAvailability:In stockNet price:€19.20
Description
The EPS series of single-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Parameters such as: small size, high efficiency, reliability, low power consumption in no-load condition make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Technical Specification
- EPS-120: series of power supplies 120~121.5W SPECIFICATION
| Model | Output | Tolerance | Noise | Efficiency | Dimensions |
| EPS-120-12 | 12V, 0~7A/10A | +/-2% | 120mV | 88% | 101.6x50.8x29mm |
| EPS-120-15 | 5V, 0~5.6A/8A | +/-2.5% | 120mV | 88.5% | 101.6x50.8x29mm |
| EPS-120-24 | 7.5V, 0~3.5A/5A | +/-1% | 150mV | 90% | 101.6x50.8x29mm |
| EPS-120-27 | 12V, 0~3.15A/4.5A | +/-1% | 150mV | 90% | 101.6x50.8x29mm |
| EPS-120-48 | 15V, 0~1.75A/2.5A | +/-1% | 200mV | 91% | 101.6x50.8x29mm |
