IRM-10

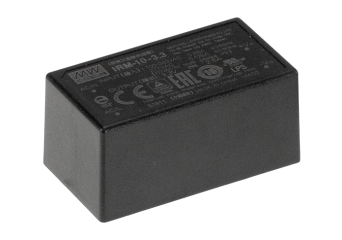

Single-output miniature power supplies: IRM-10-5,IRM-10-12,IRM-10-15,IRM-10-24
- Universal input 85~305VAC
- EMI Class B without additional components
- Wide operating temp. range -30~70°C
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation Class II
- Pass LPS
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-10-3.3AC/DC module 10W 3.3V 2.5AIn stockWarranty: €6.50€8.00Login to check your price IRM-10-3.3AC/DC module 10W 3.3V 2.5AAvailability:In stockNet price:€6.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-10-5AC/DC module 10W 5V 2AOut of stock Warranty: €6.50€8.00Login to check your price IRM-10-5AC/DC module 10W 5V 2AAvailability: Out of stockNet price:€6.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-10-12AC/DC module 10W 12V 0.85AIn stockWarranty: €6.50€8.00Login to check your price IRM-10-12AC/DC module 10W 12V 0.85AAvailability:In stockNet price:€6.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-10-15AC/DC module 10W 15V 0.67AOut of stock Warranty: €6.50€8.00Login to check your price IRM-10-15AC/DC module 10W 15V 0.67AAvailability: Out of stockNet price:€6.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-10-24AC/DC module 10W 24V 0.42AIn stockWarranty: €6.50€8.00Login to check your price IRM-10-24AC/DC module 10W 24V 0.42AAvailability:In stockNet price:€6.50
Description
IRM series is a miniature AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85-305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture.
With the high efficiency and the extremely low no-load power consumption, IRM series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class II design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference.
Available models:
- 3.3V: IRM-01-3.3, IRM-02-3.3, IRM-03-3.3, IRM-05-3.3, IRM-10-3.3, IRM-15-3.3, IRM-20-3.3
- 5V: IRM-01-5, IRM-02-5, IRM-03-5, IRM-05-5, IRM-10-5, IRM-15-5, IRM-20-5
- 9V: IRM-01-9, IRM-02-9, IRM-03-9
- 12V: IRM-01-12, IRM-02-12, IRM-03-12, IRM-05-12, IRM-10-12, IRM-15-12, IRM-20-12
- 15V: IRM-01-15, IRM-02-15, IRM-03-15, IRM-05-15, IRM-10-15, IRM-15-15, IRM-20-15
- 24V: IRM-01-24, IRM-02-24, IRM-03-24, IRM-05-24, IRM-10-24, IRM-15-24, IRM-20-4
Technical Specification
- IRM-10: 8~10W DETAILS
Model Output Tolerance Ripple & noise Efficiency Dimension IRM-10-3.3 3.3V, 0~2.5A +/-2.5% 200mV 74% 45.7x25.4x21.5mm IRM-10-5 5V, 0~2.0A +/-2.5% 200mV 77% 45.7x25.4x21.5mm IRM-10-12 12V, 0~0.85A +/-2.5% 200mV 82% 45.7x25.4x21.5mm IRM-10-15 15V, 0~0.67A +/-2.5% 200mV 82% 45.7x25.4x21.5mm IRM-10-24 24V, 0~0.42A +/-2.5% 200mV 82% 45.7x25.4x21.5mm
