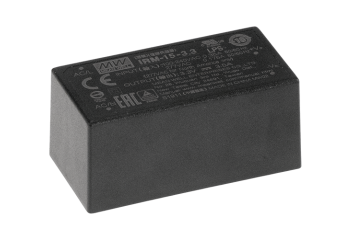

IRM-15
Single-output miniature power supplies: IRM-15-3.3,IRM-15-5,IRM-15-12,IRM-15-15,IRM-15-24
- Universal input 85~305VAC
- EMI Class B without additional components
- Wide operating temp. range -30~70°C
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation Class II
- Pass LPS
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-15-3.3AC/DC module 15W 3.3V 3.5AOut of stock Warranty: €7.70€9.47Login to check your price IRM-15-3.3AC/DC module 15W 3.3V 3.5AAvailability: Out of stockNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-15-5AC/DC module 15W 5V 3AIn stockWarranty: €7.70€9.47Login to check your price IRM-15-5AC/DC module 15W 5V 3AAvailability:In stockNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-15-12AC/DC module 15W 12V 1.25AIn delivery Warranty: €7.70€9.47Login to check your price IRM-15-12AC/DC module 15W 12V 1.25AAvailability: In deliveryNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-15-15AC/DC module 15W 15V 1AOut of stock Warranty: €7.70€9.47Login to check your price IRM-15-15AC/DC module 15W 15V 1AAvailability: Out of stockNet price:€7.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-15-24AC/DC module 15W 24V 0.63AOut of stock Warranty: €7.70€9.47Login to check your price IRM-15-24AC/DC module 15W 24V 0.63AAvailability: Out of stockNet price:€7.70
Description
IRM series is a miniature AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85-305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture.
With the high efficiency and the extremely low no-load power consumption, IRM series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class II design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference.
Available models:
- 3.3V: IRM-01-3.3, IRM-02-3.3, IRM-03-3.3, IRM-05-3.3, IRM-10-3.3, IRM-15-3.3, IRM-20-3.3
- 5V: IRM-01-5, IRM-02-5, IRM-03-5, IRM-05-5, IRM-10-5, IRM-15-5, IRM-20-5
- 9V: IRM-01-9, IRM-02-9, IRM-03-9
- 12V: IRM-01-12, IRM-02-12, IRM-03-12, IRM-05-12, IRM-10-12, IRM-15-12, IRM-20-12
- 15V: IRM-01-15, IRM-02-15, IRM-03-15, IRM-05-15, IRM-10-15, IRM-15-15, IRM-20-15
- 24V: IRM-01-24, IRM-02-24, IRM-03-24, IRM-05-24, IRM-10-24, IRM-15-24, IRM-20-4
Technical Specification
- IRM-15: 12~15W DETAILS
Model Output Tolerance Ripple & noise Efficiency Dimension IRM-15-3.3 3.3V, 0~3.5A +/-2.5% 200mV 74% 52.4x27.2x24mm IRM-15-5 5V, 0~3.0A +/-2.5% 200mV 78% 52.4x27.2x24mm IRM-15-12 12V, 0~1.25A +/-2.5% 200mV 82% 52.4x27.2x24mm IRM-15-15 15V, 0~1.0A +/-2.5% 200mV 82% 52.4x27.2x24mm IRM-15-24 24V, 0~0.63A +/-2.5% 200mV 83% 52.4x27.2x24mm
