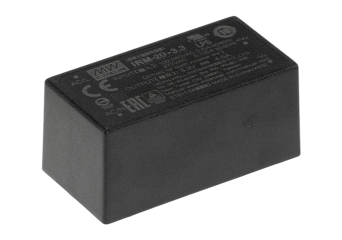

IRM-20
Single-output miniature power supplies: IRM-20-3.3,IRM-20-5,IRM-20-12,IRM-20-15,IRM-20-24
- Universal input 85~305VAC
- EMI Class B without additional components
- Wide operating temp. range -30~70°C
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation Class II
- Pass LPS
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-3.3AC/DC module 20W 3.3V 4.5AIn stockWarranty: €8.20€10.09Login to check your price IRM-20-3.3AC/DC module 20W 3.3V 4.5AAvailability:In stockNet price:€8.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-5AC/DC module 20W 5V 4.4AIn stockWarranty: €8.20€10.09Login to check your price IRM-20-5AC/DC module 20W 5V 4.4AAvailability:In stockNet price:€8.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-12AC/DC module 20W 12V 1.8AIn stockWarranty: €8.20€10.09Login to check your price IRM-20-12AC/DC module 20W 12V 1.8AAvailability:In stockNet price:€8.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-15AC/DC module 20W 15V 1.4AIn stockWarranty: €8.20€10.09Login to check your price IRM-20-15AC/DC module 20W 15V 1.4AAvailability:In stockNet price:€8.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIRM-20-24AC/DC module 20W 24V 0.92AIn delivery Warranty: €8.20€10.09Login to check your price IRM-20-24AC/DC module 20W 24V 0.92AAvailability: In deliveryNet price:€8.20
Description
IRM series is a miniature AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85-305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture.
With the high efficiency and the extremely low no-load power consumption, IRM series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class II design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference.
Available models:
- 3.3V: IRM-01-3.3, IRM-02-3.3, IRM-03-3.3, IRM-05-3.3, IRM-10-3.3, IRM-15-3.3, IRM-20-3.3
- 5V: IRM-01-5, IRM-02-5, IRM-03-5, IRM-05-5, IRM-10-5, IRM-15-5, IRM-20-5
- 9V: IRM-01-9, IRM-02-9, IRM-03-9
- 12V: IRM-01-12, IRM-02-12, IRM-03-12, IRM-05-12, IRM-10-12, IRM-15-12, IRM-20-12
- 15V: IRM-01-15, IRM-02-15, IRM-03-15, IRM-05-15, IRM-10-15, IRM-15-15, IRM-20-15
- 24V: IRM-01-24, IRM-02-24, IRM-03-24, IRM-05-24, IRM-10-24, IRM-15-24, IRM-20-4
Technical Specification
- IRM-20: 15~22W DETAILS
Model Output Tolerance Ripple & noise Efficiency Dimension IRM-20-3.3 3.3V, 0~4.5A +/-2.5% 200mV 76% 52.4x27.2x24mm IRM-20-5 5V, 0~4A +/-2.5% 200mV 79% 52.4x27.2x24mm IRM-20-12 12V, 0~1.8A +/-2.5% 200mV 84% 52.4x27.2x24mm IRM-20-15 15V, 0~1.4A +/-2.5% 200mV 84% 52.4x27.2x24mm IRM-20-24 24V, 0~0.9A +/-2.5% 200mV 85% 52.4x27.2x24mm
