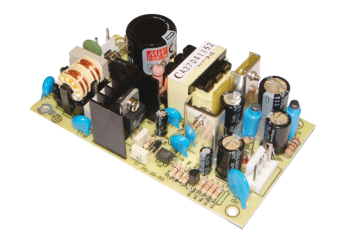

PD-25

2-output power supplies, PCB Open Frame type: PD-25A, PD-25B, PD-2505, PD-2512, PD-2515

  • input voltage 85-264VAC, 120-370VDC
  • protections: short circuit, overvoltage and overload protection
  • Thermal protection
  • cooling with open air circulation
  • working temperature from -10 ~ + 50 ° C
  • compliance with many standards and certificates
  • small size
  • 2 years warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Price from €13.50 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 5 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
PD-25

PD-25

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PD-25A
    open frame power supply 25W 5V, 12V
    In stock
    Warranty:
    €13.50
    €16.61
    Login to check your price
    96 pieces in box
    PD-25A
    open frame power supply 25W 5V, 12V
    Availability:
    In stock
    Net price:
    €13.50
    96 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PD-25B
    open frame power supply 25W 5V, 24V
    Out of stock Warranty:
    €13.50
    €16.61
    Login to check your price
    96 pieces in box
    PD-25B
    open frame power supply 25W 5V, 24V
    Availability: Out of stock
    Net price:
    €13.50
    96 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PD-2505
    open frame power supply 25W 5V, -5V
    Out of stock Warranty:
    €13.50
    €16.61
    Login to check your price
    96 pieces in box
    PD-2505
    open frame power supply 25W 5V, -5V
    Availability: Out of stock
    Net price:
    €13.50
    96 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PD-2512
    open frame power supply 25W 12V, -12V
    In stock
    Warranty:
    €13.50
    €16.61
    Login to check your price
    96 pieces in box
    PD-2512
    open frame power supply 25W 12V, -12V
    Availability:
    In stock
    Net price:
    €13.50
    96 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PD-2515
    open frame power supply 25W 15V, -15V
    Out of stock Warranty:
    €13.50
    €16.61
    Login to check your price
    96 pieces in box
    PD-2515
    open frame power supply 25W 15V, -15V
    Availability: Out of stock
    Net price:
    €13.50
    96 pieces in box

Description

The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.

Technical Specification

  • PD-25: 24~25W DETAILS

    Model Output Tolerance Ripple & noise Efficiency Max power Dimension
    PD-25A 5V, 0.2~2.5A
    12V, 0.1~1.5A
    +/-2%
    +/-6%
    50mV
    150mV
    71% 25W 107x61x28mm
    PD-25B 5V, 0.2~2.0A
    24V, 0.1~1.0A
    +/-2%
    +/-6%
    50mV
    200mV
    77% 25W 107x61x28mm
    PD-2505 5V, 0.1~3.0A
    -5V, 0.1~2.5A
    +/-6%
    +/-6%
    50mV
    50mV
    73% 25W 107x61x28mm
    PD-2512 12V, 0.1~1.2A
    -12V, 0.1~1.2A
    +/-4%
    +/-4%
    50mV
    50mV
    74% 24W 107x61x28mm
    PD-2515 15V, 0.1~1.0A
    -15V, 0.1~1.0A
    +/-4%
    +/-4%
    50mV
    50mV
    75% 24W 107x61x28mm
    PD-2503 3.3V, 0.2~5.0A
    5V, 0.1~4.0A
    +/-2%
    +5%,-8%
    50mV
    50mV
    72% 25W 107x61x28mm
