PD-45

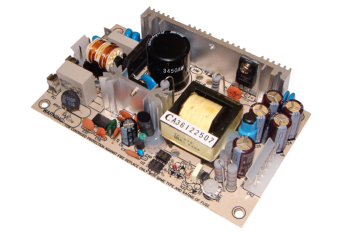

2-output power supplies, PCB Open Frame type: PD-45A, PD-45B

  • input voltage 90-264VAC, 127-370VDC
  • protections: short circuit, overvoltage and overload protection
  • adjustable output voltage in the range of -5 ~ + 10%
  • cooling with open air circulation
  • working temperature from -10 ~ + 60 ° C
  • compliance with many standards and certificates
  • small size
  • 2 years warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Price from €13.70 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
PD-45

PD-45

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PD-45A
    open frame power supply 45W 5V, 12V
    Out of stock Warranty:
    €13.70
    €16.85
    Login to check your price
    72 pieces in box
    PD-45A
    open frame power supply 45W 5V, 12V
    Availability: Out of stock
    Net price:
    €13.70
    72 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PD-45B
    open frame power supply 45W 5V, 24V
    Out of stock Warranty:
    €13.70
    €16.85
    Login to check your price
    72 pieces in box
    PD-45B
    open frame power supply 45W 5V, 24V
    Availability: Out of stock
    Net price:
    €13.70
    72 pieces in box

Description

The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.

Technical Specification

  • PD-45: 40~45W DETAILS

    Model Output Tolerance Ripple & noise Efficiency Max power Dimension
    PD-45A 5V, 0.4~5.0A
    12V, 0.2~2.5A
    +/-4%
    +/-7%
    50mV
    120mV
    77% 40W 127x76x28mm
    PD-45B 5V, 0.4~5.0A
    24V, 0.2~1.8A
    +/-4%
    +/-7%
    50mV
    120mV
    78% 45W 127x76x28mm
