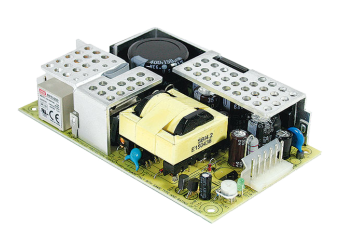

RPD-65
2-output power supplies, PCB Open Frame type: RPD-65C, RPD-65D
- input voltage 90-264VAC, 127-370VDC
- two outputs: 12V, 5V or 24V, 5V
- protections: short circuit, overvoltage and overload protection
- regulation of the output voltage in the range of +/- 5%
- cooling with open air circulation
- working temperature from -20 ~ + 60 ° C
- compliance with many standards and certificates
- small size
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €20.20 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPD-65Copen frame power supply 65W 12V, 5VOut of stock Warranty: €20.20€24.85Login to check your price RPD-65Copen frame power supply 65W 12V, 5VAvailability: Out of stockNet price:€20.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPD-65Dopen frame power supply 65W 24V, 5VOut of stock Warranty: €20.20€24.85Login to check your price RPD-65Dopen frame power supply 65W 24V, 5VAvailability: Out of stockNet price:€20.20
Description
The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.
Technical Specification
- RPD-65: 60W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| RPD-65C | 12V, 0~5.8A 5V, 0~1.5A |
+/-2% +/-5% |
120mV 50mV |
79% | 60W | 127x76x29mm |
| RPD-65D | 24V, 0~2.9A 5V, 0~1.5A |
+/-2% +/-5% |
150mV 50mV |
81% | 60W | 127x76x29mm |
