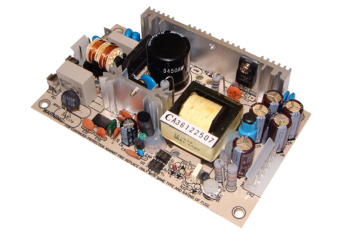

PT-45

3-output power supplies, PCB Open Frame type: PT-45A, PT-45B, PT-45C, PT-4503

  • input voltage 90-264VAC, 127-370VDC
  • protections: short circuit, overvoltage and overload protection
  • regulation of the output voltage in the range of +/- 5%
  • cooling with open air circulation
  • working temperature from -10 ~ + 50 ° C
  • compliance with many standards and certificates
  • small size
  • 2 years warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Price from €15.10 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 3 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
PT-45

PT-45

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PT-45A
    open frame power supply 45W 5V, 12V, -5V
    Out of stock Warranty:
    €15.10
    €18.57
    Login to check your price
    72 pieces in box
    PT-45A
    open frame power supply 45W 5V, 12V, -5V
    Availability: Out of stock
    Net price:
    €15.10
    72 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PT-45B
    open frame power supply 45W 5V, 12V, -12V
    Out of stock Warranty:
    €15.10
    €18.57
    Login to check your price
    72 pieces in box
    PT-45B
    open frame power supply 45W 5V, 12V, -12V
    Availability: Out of stock
    Net price:
    €15.10
    72 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PT-45C
    open frame power supply 45W 5V, 15V, -15V
    Out of stock Warranty:
    €15.10
    €18.57
    Login to check your price
    72 pieces in box
    PT-45C
    open frame power supply 45W 5V, 15V, -15V
    Availability: Out of stock
    Net price:
    €15.10
    72 pieces in box

Description

The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.

Technical Specification

Model Output Tolerance Ripple & noise Efficiency Max power Dimension
PT-45A 5V, 0.4~5.0A
12V, 0.2~2.5A
-5V, 0.0~0.5A
+/-4%
+/-7%
+/-5%
50mV
120mV
50mV
75% 41W 127x76x28mm
PT-45B 5V, 0.4~5.0A
12V, 0.2~2.5A
-12V, 0.0~0.5A
+/-4%
+/-7%
+/-5%
50mV
120mV
100mV
75% 43W 127x76x28mm
PT-45C 5V, 0.4~5.0A
15V, 0.2~2.3A
-15V, 0.0~0.5A
+/-4%
+/-7%
+/-5%
50mV
120mV
100mV
75% 44W 127x76x28mm



Model Output Tolerance Ripple & noise Efficiency Max power Dimension
PT-4503 3.3V, 0.0~5.0A
5V, 0.2~7.0A
12V, 0.0~1.2A
+/-2%
+4%,-2%
+/-4%
50mV
50mV
100mV
72% 45W 127x76x42mm
