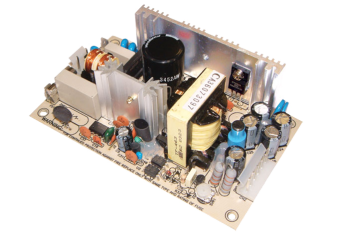

PT-65
3-output power supplies, PCB Open Frame type: PT-65A, PT-65B, PT-65C, PT-65D, PT-6503
- input voltage 90-264VAC, 127-370VDC
- protections: short circuit, overvoltage and overload protection
- regulation of the output voltage in the range of +/- 5%
- cooling with open air circulation
- working temperature from -10 ~ + 60 ° C
- compliance with many standards and certificates
- small size
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €16.50 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-65Aopen frame power supply 65W 5V, 12V, -5VOut of stock Warranty: €16.50€20.30Login to check your price PT-65Aopen frame power supply 65W 5V, 12V, -5VAvailability: Out of stockNet price:€16.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-65Bopen frame power supply 65W 5V, 12V, -12VIn stockWarranty: €16.50€20.30Login to check your price PT-65Bopen frame power supply 65W 5V, 12V, -12VAvailability:In stockNet price:€16.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-65Copen frame power supply 65W 5V, 15V, -15VOut of stock Warranty: €16.50€20.30Login to check your price PT-65Copen frame power supply 65W 5V, 15V, -15VAvailability: Out of stockNet price:€16.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-65Dopen frame power supply 65W 5V, 12V, 24VOut of stock Warranty: €16.50€20.30Login to check your price PT-65Dopen frame power supply 65W 5V, 12V, 24VAvailability: Out of stockNet price:€16.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPT-6503open frame power supply 65W 3.3V, 5V, 12VOut of stock Warranty: €22.60€27.80Login to check your price PT-6503open frame power supply 65W 3.3V, 5V, 12VAvailability: Out of stockNet price:€22.60
Description
The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.
Technical Specification
- PT-65: 60~68W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| PT-65A | 5V, 0.4~7.0A 12V, 0.2~3.2A -5V, 0.0~0.7A |
+/-4% +/-7% +/-5% |
50mV 120mV 50mV |
76% | 60W | 127x76x42mm |
| PT-65B | 5V, 0.4~7.0A 12V, 0.2~3.2A -12V, 0.0~0.7A |
+/-4% +/-7% +/-5% |
50mV 120mV 100mV |
77% | 64W | 127x76x42mm |
| PT-65C | 5V, 0.4~7.0A 15V, 0.2~2.6A -15V, 0.0~0.7A |
+/-4% +/-7% +/-5% |
50mV 120mV 100mV |
77% | 65W | 127x76x42mm |
| PT-65D | 5V, 0.4~5.0A 12V, 0.2~4.0A 24V, 0.0~1.3A |
+/-4% +/-6% +/-6% |
50mV 100mV 200mV |
79% | 68W | 127x76x42mm |
- PT-6503: 62W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| PT-6503 | 3.3V, 0.0~7.0A 5V, 0.2~10A 12V, 0.0~1.2A |
+/-3% +4%,-2% +/-4% |
50mV 50mV 100mV |
72% | 62W | 127x76x42mm |
