RPT-65

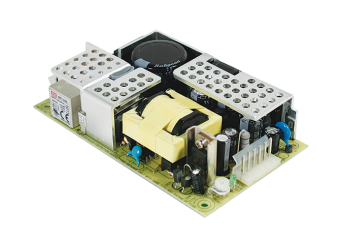

3-output power supplies, PCB Open Frame type: RPT-65E, RPT-65F, RPT-65G
- input voltage 90-264VAC, 127-370VDC
- protections: short circuit, overvoltage and overload protection
- regulation of the output voltage in the range of +/- 5%
- cooling with open air circulation
- optional housing
- working temperature from -10 ~ + 50 ° C
- compliance with many standards and certificates
- small size
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €21.90 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPT-65Eopen frame power supply 65W 12V, 5V,-5VOut of stock Warranty: €21.90€26.94Login to check your price RPT-65Eopen frame power supply 65W 12V, 5V,-5VAvailability: Out of stockNet price:€21.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPT-65Fopen frame power supply 65W 12V, 5V,-12VOut of stock Warranty: €21.90€26.94Login to check your price RPT-65Fopen frame power supply 65W 12V, 5V,-12VAvailability: Out of stockNet price:€21.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRPT-65Gopen frame power supply 65W 24V, 5V, 12VOut of stock Warranty: €21.90€26.94Login to check your price RPT-65Gopen frame power supply 65W 24V, 5V, 12VAvailability: Out of stockNet price:€21.90
Description
The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.
Technical Specification
-
RPT-65: 63~66W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension RPT-65E 12V, 0.18~5.8A
5V, 0.0~1.5A
-5V, 0.0~0.7A+/-2%
+/-5%
+/-5%120mV
100mV
120mV77% 63W 127x76x29mm RPT-65F 12V, 0.18~5.8A
5V, 0.0~1.5A
-12V, 0.0~0.7A+/-2%
+/-5%
+/-5%150mV
100mV
150mV77% 66W 127x76x29mm RPT-65G 24V, 0.09~2.9A
5V, 0.0~1.5A
12V, 0.0~0.7A+/-2%
+/-5%
+/-5%150mV
50mV
100mV81% 66W 127x76x29mm
