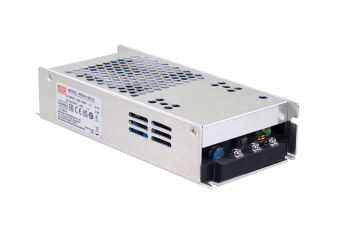

RSDH-150
Single-output converter with a wide range input voltage
- wide input voltage range: 250~1500Vdc
- I/O isolation 4000VDC
- protections: overvoltage, short-circuit, overload
- Thermal protection
- input reverse polarity protection
- low profile 1U
- open-air cooling
- built-in DC current limitation
- operating temperature from -40~+80°C
- low cost high reliability
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Price from €60.10 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
RSDH-150
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSDH-150-12DC/DC converter 120W 250~1500V-12V 10AOut of stock Warranty: €60.10€73.92Login to check your price RSDH-150-12DC/DC converter 120W 250~1500V-12V 10AAvailability: Out of stockNet price:€60.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSDH-150-24DC/DC converter 150W 250~1500V-24V 6.2AIn stockWarranty: €60.10€73.92Login to check your price RSDH-150-24DC/DC converter 150W 250~1500V-24V 6.2AAvailability:In stockNet price:€60.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSDH-150-32DC/DC converter 150W 250~1500V-32V 4.68AOut of stock Warranty: €60.10€73.92Login to check your price RSDH-150-32DC/DC converter 150W 250~1500V-32V 4.68AAvailability: Out of stockNet price:€60.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSDH-150-48DC/DC converter 150W 250~1500V-48V 3.12AOut of stock Warranty: €60.10€73.92Login to check your price RSDH-150-48DC/DC converter 150W 250~1500V-48V 3.12AAvailability: Out of stockNet price:€60.10
Description
The RSDH-150 is a MEAN WELL DC/DC converter with a wide input voltage range: 250~1500 Vdc. The device is dedicated to photovoltaic and wind installations, and other applications where conversion from high DC to low voltage is required. The device has the following protections: short-circuit, overload, overvoltage, temperature, reverse polarity protection.
Technical Specification
- RSDH-150: DC/DC converter 120W~150W (SPECIFICATION)
| Model | Input | Output | Ripple&Noise | Efficiency | Dimensions |
| RSDH-150-12 | 250~1500Vdc | 12V, 0~10A | 120mV | 88% | 191x86x41mm |
| RSDH-150-24 | 250~1500Vdc | 24V, 0~6.2A | 240mV | 90% | 191x86x41mm |
| RSDH-150-32 | 250~1500Vdc | 32V, 0~4.68A | 240mV | 91% | 191x86x41mm |
| RSDH-150-48 | 250~1500Vdc | 48V, 0~3.12A | 300mV | 92% | 191x86x41mm |
