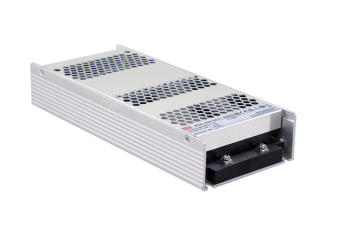

RSDH-300
Single-output converter with a wide range input voltage
- wide input voltage range: 250~1500Vdc
- I/O isolation 4000VDC
- protections: overvoltage, short-circuit, overload
- Thermal protection
- input reverse polarity protection
- low profile 1U
- open-air cooling
- built-in DC current limitation
- operating temperature from -40~+80°C
- low cost high reliability
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Price from €90.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
RSDH-300
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSDH-300-12DC/DC converter 240W 250~1500V-12V 20AOut of stock Warranty: €90.00€110.70Login to check your price RSDH-300-12DC/DC converter 240W 250~1500V-12V 20AAvailability: Out of stockNet price:€90.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSDH-300-24DC/DC converter 300W 250~1500V-24V 12.5AOut of stock Warranty: €90.00€110.70Login to check your price RSDH-300-24DC/DC converter 300W 250~1500V-24V 12.5AAvailability: Out of stockNet price:€90.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSDH-300-32DC/DC converter 300W 250~1500V-32V 9.37AOut of stock Warranty: €90.00€110.70Login to check your price RSDH-300-32DC/DC converter 300W 250~1500V-32V 9.37AAvailability: Out of stockNet price:€90.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSDH-300-48DC/DC converter 300W 250~1500V-48V 6.25AOut of stock Warranty: €90.00€110.70Login to check your price RSDH-300-48DC/DC converter 300W 250~1500V-48V 6.25AAvailability: Out of stockNet price:€90.00
Description
The RSDH-300 is a MEAN WELL DC/DC converter with a wide input voltage range: 250~1500 Vdc. The device is dedicated to photovoltaic and wind installations, and other applications where conversion from high DC to low voltage is required. The device has the following protections: short-circuit, overload, overvoltage, temperature, reverse polarity protection.
Technical Specification
- RSDH-300: DC/DC converter 240W~300W (SPECIFICATION)
| Model | Input | Output | Ripple&Noise | Efficiency | Dimensions |
| RSDH-300-12 | 250~1500Vdc | 12V, 0~20A | 120mV | 88% | 237x100x41mm |
| RSDH-300-24 | 250~1500Vdc | 24V, 0~12.5A | 240mV | 90% | 237x100x41mm |
| RSDH-300-32 | 250~1500Vdc | 32V, 0~9.37A | 240mV | 90% | 237x100x41mm |
| RSDH-300-48 | 250~1500Vdc | 48V, 0~6.25A | 300mV | 91% | 237x100x41mm |
