Manufacturer: MEAN WELL
- supply voltage: APC-16: 90-264VAC, 127-370VDC, APC-16E: 180 ~ 264VAC 254 ~ 370VDC
- insulated plastic housing
- constant output current regardless of load
- short-circuit, overload and overvoltage protection
- class II insulation (without earthing)
- cooling with open air circulation
- working temperature -30 ~ + 70 ° C
- IP30
- compliance with a number of standards and certificates
- low cost, high reliability
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €6.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-16-350LED driver 16W 12~48V 0.35AIn stockWarranty: €6.00€7.38Login to check your price APC-16-350LED driver 16W 12~48V 0.35AAvailability:In stockNet price:€6.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-16-700LED driver 16W 9~24V 0.7AIn stockWarranty: €6.00€7.38Login to check your price APC-16-700LED driver 16W 9~24V 0.7AAvailability:In stockNet price:€6.00
Description

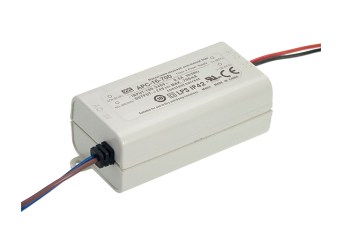

The APC series power supplies are small and compact in size and comply with lighting standards. The power supplies provide a constant output current regardless of the load. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- APC-16: Power supplies for LED lighting systems 16.8W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | EFficiency | Cable length | Dimensions |
| APC-16-350 | 12~48V, 350mA | +/-5% | 300mV | 84% | 150mm | 77x40x29mm |
| APC-16-700 | 9~24V, 700mA | +/-5% | 250mV | 83% | 150mm | 77x40x29mm |
