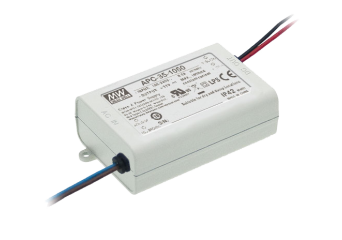

APC-35
Power supplies for LED lighting systems: APC-35-350, APC-35-500, APC-35-700, APC-35-1050
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- supply voltage: 90-264VAC, 127-370VDC
- insulated plastic housing
- constant output current regardless of load
- short-circuit, overload and overvoltage protection
- class II insulation (without earthing)
- cooling with open air circulation
- working temperature -30 ~ + 70 ° C
- IP30
- compliance with a number of standards and certificates
- low cost, high reliability
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €11.10 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-35-350LED driver 35W 28~100V 0.35AIn stockWarranty: €11.10€13.65Login to check your price APC-35-350LED driver 35W 28~100V 0.35AAvailability:In stockNet price:€11.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-35-500LED driver 35W 25~70V 0.5AOut of stock Warranty: €11.10€13.65Login to check your price APC-35-500LED driver 35W 25~70V 0.5AAvailability: Out of stockNet price:€11.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-35-700LED driver 35W 15~50V 0.7AIn delivery Warranty: €11.10€13.65Login to check your price APC-35-700LED driver 35W 15~50V 0.7AAvailability: In deliveryNet price:€11.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-35-1050LED driver 35W 11~33V 1.05AIn stockWarranty: €11.10€13.65Login to check your price APC-35-1050LED driver 35W 11~33V 1.05AAvailability:In stockNet price:€11.10
Description
The APC series power supplies are small and compact in size and comply with lighting standards. The power supplies provide a constant output current regardless of the load. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- APC-35: Power supplies for LED lighting systems 34.7~35W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| APC-35-350 | 28~100V, 350mA | +/-5% | 350mV | 84% | 150mm | 84x57x29.5mm |
| APC-35-500 | 25~70V, 500mA | +/-5% | 350mV | 84% | 150mm | 84x57x29.5mm |
| APC-35-700 | 15~50V, 700mA | +/-5% | 350mV | 84% | 150mm | 84x57x29.5mm |
| APC-35-1050 | 11~33V, 1050mA | +/-5% | 300mV | 84% | 150mm | 84x57x29.5mm |
