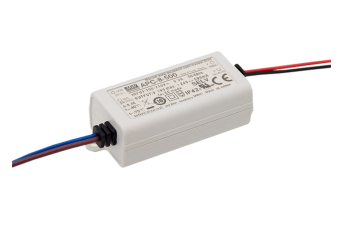

APC-8
Power supplies for LED lighting systems: APC-8E-250, APC-8E-350, APC-8E-700, APC-8E-500
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- supply voltage: APC-8: 90-264VAC, 127-370VDC, APC-8E: 180 ~ 264VAC, 254 ~ 370VDC
- insulated plastic housing
- constant output current regardless of load
- short-circuit, overload and overvoltage protection
- class II insulation (without earthing)
- cooling with open air circulation
- working temperature -30 ~ + 70 ° C
- IP30
- compliance with a number of standards and certificates
- low cost, high reliability
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €4.60 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-8-250LED driver 8W 16~32V 0.25AOut of stock Warranty: €4.60€5.66Login to check your price APC-8-250LED driver 8W 16~32V 0.25AAvailability: Out of stockNet price:€4.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-8-350LED driver 8W 11~23V 0.35AIn stockWarranty: €4.60€5.66Login to check your price APC-8-350LED driver 8W 11~23V 0.35AAvailability:In stockNet price:€4.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-8-500LED driver 8W 8~16V 0.5AIn stockWarranty: €4.60€5.66Login to check your price APC-8-500LED driver 8W 8~16V 0.5AAvailability:In stockNet price:€4.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAPC-8-700LED driver 8W 5~11V 0.7AIn delivery Warranty: €4.60€5.66Login to check your price APC-8-700LED driver 8W 5~11V 0.7AAvailability: In deliveryNet price:€4.60
Description
The APC series power supplies are small and compact in size and comply with lighting standards. The power supplies provide a constant output current regardless of the load. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- APC-8/APC-8E: Power supplies for LED 7.7~8.05W SPECIFICATION SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| APC-8-250 | 16~32V, 250mA | +/-5% | 350mV | 84% | 150mm | 60x30x22mm |
| APC-8-350 | 11~23V, 350mA | +/-5% | 300mV | 83% | 150mm | 60x30x22mm |
| APC-8-500 | 8~16V, 500mA | +/-5% | 300mV | 82% | 150mm | 60x30x22mm |
| APC-8-700 | 5~11V, 700mA | +/-5% | 250mV | 80% | 150mm | 60x30x22mm |
