Manufacturer: MEAN WELL
- built-in KNX interface
- output current set with a switch
- fully insulated plastic housing IP20
- short circuit, thermal and overvoltage protection
- active PFC system
- class II insulation
- working temperature -30 ~ + 90 ° C
- external NTC temperature compensation function
- no-load power consumption <0.5W
- cooperation with emergency lighting
- constant luminous flux function (CLO)
- synchronization function up to 10 units
- no flickering effect
- dimming functions, staircase mode, working hours etc.
- information on energy consumption, selection of logarithmic / linear curve
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €42.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
LCM-25KN
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-25KNKNX LED driver 25W 6~54V 0.35~1.05AIn stockWarranty: €42.00€51.66Login to check your price LCM-25KNKNX LED driver 25W 6~54V 0.35~1.05AAvailability:In stockNet price:€42.00
Description

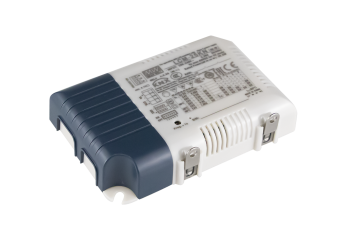

The LCM-25KN series DC power supply with a built-in KNX interface has the option of setting the output current using a DIP switch. LCM-25KN are dedicated to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- LCM-25KN KNX LED constant current power supply 18,9~25.2W specification
| Model | Output | Tolerance | Ripple and noise | Efficiency | Dimensions |
| LCM-25/LCM-25KN | 350mA, 6~54V 500mA, 6~50V 600mA, 6~42V 700mA, 6~36V (fab) 900mA, 6~28V 1050mA, 6~24V |
+/-5 | 400mV | 85,5% | 105.5x68x23mm |
