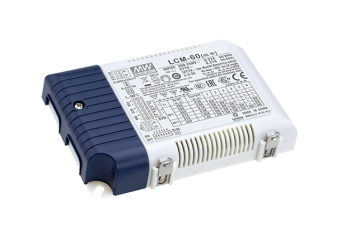

LCM-60
Constant current power supplies with current regulation and DALI interface: LCM-60, LCM-60DA
- output current set with a switch
- supply voltage: 180-295VAC (180-277VAC LCM-25 / 25DA)
- fully insulated plastic housing
- short-circuit and thermal protection (over voltage 40W and 60W models)
- active PFC system
- class II insulation
- working temperature -30 ~ + 60 ° C
- IP20
- additional auxiliary output 12V 50mA (40W and 60W models)
- external NTC temperature compensation function
- no-load power consumption <1W (60W models)
- no-load power consumption <0.5W (25W and 40W models)
- synchronization function up to 10 units
- 0 ~ 10VDC and PWM and 0-100KΩ dimming function (LCM-25/40/60)
- built-in DALI LCM-25DA / 40DA / 60DA interface)
- compliance with a number of standards and certificates
- cooling in open air circulation
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-60LED driver 60W 2~90V 0.5~1.4AIn stockWarranty: €30.30€37.27Login to check your price LCM-60LED driver 60W 2~90V 0.5~1.4AAvailability:In stockNet price:€30.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-60DALED driver 60W 2~90V 0.5~1.4AIn stockWarranty: €37.70€46.37Login to check your price LCM-60DALED driver 60W 2~90V 0.5~1.4AAvailability:In stockNet price:€37.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLCM-60DA2LED driver 60W 2~90V 0.5~1.4A DALI2In stockWarranty: €36.00€44.28Login to check your price LCM-60DA2LED driver 60W 2~90V 0.5~1.4A DALI2Availability:In stockNet price:€36.00
Description
LCM series power supplies have the option of setting the output current by means of a DIP switch. Models are dimmable from 0 ~ 10Vdc or via PWM. The LCM-25DA, LCM-40DA and LCM-60DA models have a built-in DALI interface and a push-button dimming function. Additionally, they are equipped with an auxiliary output of 12V, 50mA and an output for connecting a thermistor. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- LCM-60 / LCM-60DA power supplies 60.3W SPECIFICATION / SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| LCM-60/LCM-60DA |
500mA, 2~90V |
+/-5 | 700mV | 91,5% | 123.5x81.5x23mm |
