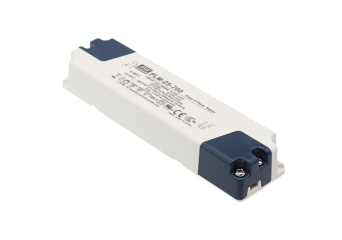

PLM-25
Constant current power supplies for LED systems with PFC: PLM-25-350, PLM-25-500, PLM-25-700, PLM-25-1050, PLM-25E-350, PLM-25E-500, PLM-25E-700, PLM-25E-1050
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- supply voltage: 110-295VAC, version E: 180-295VAC
- fully insulated plastic housing
- short-circuit, thermal protection (PLM-40)
- active PFC system
- constant current at the output
- no-load power consumption <0.5W
- cooling with open air circulation
- working temperature -30 ~ + 45 ° C
- class II insulation (no grounding)
- IP30
- compliance with a number of standards and certificates
- cooling in open air circulation
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €11.70 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLM-25-350LED driver 25W 42~72V 0.35AOut of stock Warranty: €11.70€14.39Login to check your price PLM-25-350LED driver 25W 42~72V 0.35AAvailability: Out of stockNet price:€11.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLM-25-500LED driver 25W 30~50V 0.5AOut of stock Warranty: €11.70€14.39Login to check your price PLM-25-500LED driver 25W 30~50V 0.5AAvailability: Out of stockNet price:€11.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLM-25-700LED driver 25W 21~36V 0.7AIn stockWarranty: €11.70€14.39Login to check your price PLM-25-700LED driver 25W 21~36V 0.7AAvailability:In stockNet price:€11.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLM-25-1050LED driver 25W 14~24V 1.05AOut of stock Warranty: €11.70€14.39Login to check your price PLM-25-1050LED driver 25W 14~24V 1.05AAvailability: Out of stockNet price:€11.70
Description
The PLM series power supplies have an active PFC system. The housing with connection terminals enables quick installation. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- PLM-25: Constant current power supplies for LED systems with PFC 25W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| PLM-25-350 | 42~72V, 350mA | +/-5 | 7.2V | 87% | 145x38x22mm |
| PLM-25-500 | 30~50V, 500mA | +/-5 | 5.0V | 86% | 145x38x22mm |
| PLM-25-700 | 21~36V, 700mA | +/-5% | 3.6V | 86% | 145x38x22mm |
| PLM-25-1050 | 14~24V, 1050mA | +/-5% | 2.4V | 85% | 145x38x22mm |
