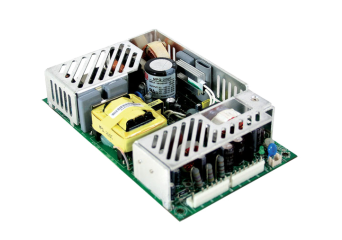

MPQ-200
4-output medical power supplies, PCB Open Frame type: MPQ-200B, MPQ-200C, MPQ-200D, MPQ-200F
- input voltage 90-264VAC 120-370VDC
- protections: short circuit, overvoltage and overload protection
- Thermal protection
- adjustable output voltage in the range of -5 ~ + 10%
- cooling with open air circulation
- working temperature from -20 ~ + 70 ° C
- voltage drop compensation, remote on / off
- work status signaling
- compliance with medical standards
- low leakage current
- small size
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €76.30 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPQ-200Bopen frame power supply 200W 5V,12V,-5V,-12VOut of stock Warranty: €76.30€93.85Login to check your price MPQ-200Bopen frame power supply 200W 5V,12V,-5V,-12VAvailability: Out of stockNet price:€76.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPQ-200Copen frame power supply 200W 5V,15V,-5V,-15VOut of stock Warranty: €76.30€93.85Login to check your price MPQ-200Copen frame power supply 200W 5V,15V,-5V,-15VAvailability: Out of stockNet price:€76.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPQ-200Dopen frame power supply 200W 5V,24V,12V,-12VOut of stock Warranty: €76.30€93.85Login to check your price MPQ-200Dopen frame power supply 200W 5V,24V,12V,-12VAvailability: Out of stockNet price:€76.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPQ-200Fopen frame power supply 200W 5V,24V,15V,-15VOut of stock Warranty: €76.30€93.85Login to check your price MPQ-200Fopen frame power supply 200W 5V,24V,15V,-15VAvailability: Out of stockNet price:€76.30
Description
The series of 2,3,4-output medical power supplies without housing is intended for use in medical applications, automation, electronics, telecommunications, etc. Compliance with medical standards guarantees a high degree of safety. The shoulder of the casing allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Technical Specification
-
MPQ-200: 190~200W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension MPQ-200B 5V, 3.0~18A
12V, 0.7~8.4A
-5V, 0.0~2.4A
-12V, 0.0~2.4A+/-2%
+/-8%
+/-5%
+/-5%80mV
120mV
80mV
80mV78% 193W 177.8x107.2x35.5mm MPQ-200C 5V, 3.0~18A
15V, 0.5~6.0A
-5V, 0.0~2.4A
-15V, 0.0~2.4A+/-2%
+/-6%
+/-5%
+/-5%80mV
150mV
80mV
80mV78% 190W 177.8x107.2x35.5mm MPQ-200D 5V, 3.0~18A
24V, 0.3~3.6A
12V, 0.0~2.4A
-12V, 0.0~2.4A+/-2%
+/-8%
+/-5%
+/-5%80mV
150mV
300mV
180mV79% 195W 177.8x107.2x35.5mm MPQ-200F 5V, 3.0~18A
24V, 0.3~3.3A
15V, 0.0~2.4A
-15V, 0.0~2.4A+/-2%
+/-8%
+/-5%
+/-5%80mV
180mV
80mV
80mV81% 200W 177.8x107.2x35.5mm
