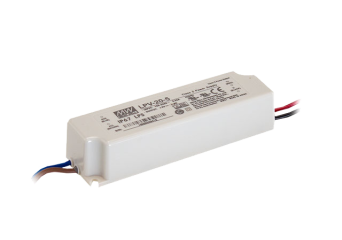

LPV-20
Constant voltage LED power supplies IP67: LPV-20-5,LPV-20-12,LPV-20-15,LPV-20-24
- supply voltage: 90-264VAC
- hermetic plastic housing in accordance with the IP67 standard
- constant output voltage regardless of load
- short-circuit, overload and overvoltage protection
- 300VAC surge resistance for 5 seconds
- class II insulation
- cooling with open air circulation
- working temperature 30 ~ + 70 ° C
- compliance with a number of standards and certificates
- low cost, high reliability
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-20-5LED driver 20W 5V 3AIn stockWarranty: €8.40€10.33Login to check your price LPV-20-5LED driver 20W 5V 3AAvailability:In stockNet price:€8.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-20-12LED driver 20W 12V 1.67AIn stockWarranty: €8.40€10.33Login to check your price LPV-20-12LED driver 20W 12V 1.67AAvailability:In stockNet price:€8.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-20-15LED driver 20W 15V 1.33AIn stockWarranty: €8.40€10.33Login to check your price LPV-20-15LED driver 20W 15V 1.33AAvailability:In stockNet price:€8.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-20-24LED driver 20W 24V 0.84AIn stockWarranty: €8.40€10.33Login to check your price LPV-20-24LED driver 20W 24V 0.84AAvailability:In stockNet price:€8.40
Description
The LP series voltage power supplies are characterized by a narrow plastic housing with a high tightness class, which allows them to be used in conditions of increased humidity. Wires with a length of 60 cm (30 cm for LPH and LPV-100) are led out of the housing. The power supplies provide a constant output voltage regardless of the load. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- LPV-20: Constant voltage LED power supplies IP67 90~264VAC - SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| LPV-20-5 | 5V, 0~3.0A | +/-5% | 80mV | 77% | 600mm | 118x35x26mm |
| LPV-20-12 | 12V, 0~1.67A | +/-5% | 120mV | 81% | 600mm | 118x35x26mm |
| LPV-20-15 | 15V, 0~1.33A | +/-5% | 120mV | 83% | 600mm | 118x35x26mm |
| LPV-20-24 | 24V, 0~0.84A | +/-5% | 150mV | 83% | 600mm | 118x35x26mm |
