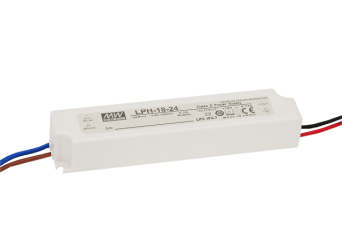

LPH-18
Constant voltage LED power supplies IP67: LPH-18-12, LPH-18-24, LPH-18-36
- Supply voltage: 180-264VAC
- hermetic plastic housing in accordance with the IP67 standard
- constant output voltage regardless of load
- short-circuit, overload and overvoltage protection
- thermal protection in LPH models
- 300VAC surge resistance for 5 seconds
- class II insulation
- cooling with open air circulation
- working temperature -30 ~ + 70 ° C
- compliance with a number of standards and certificates
- low cost, high reliability
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPH-18-12LED driver 18W 12V 1.5AIn stockWarranty: €7.00€8.61Login to check your price LPH-18-12LED driver 18W 12V 1.5AAvailability:In stockNet price:€7.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPH-18-24LED driver 18W 24V 0.75AIn stockWarranty: €7.00€8.61Login to check your price LPH-18-24LED driver 18W 24V 0.75AAvailability:In stockNet price:€7.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPH-18-36LED driver 18W 36V 0.5AOut of stock Warranty: €7.00€8.61Login to check your price LPH-18-36LED driver 18W 36V 0.5AAvailability: Out of stockNet price:€7.00
Description
The LP series voltage power supplies are characterized by a narrow plastic housing with a high tightness class, which allows them to be used in conditions of increased humidity. Wires with a length of 60 cm (30 cm for LPH and LPV-100) are led out of the housing. The power supplies provide a constant output voltage regardless of the load. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- LPH-18: Constant voltage LED power supplies 180~264VAC - SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| LPH-18-12 | 12V, 0~1.5A | +/-3% | 120mV | 78% | 300mm | 140x30x20mm |
| LPH-18-24 | 24V, 0~0.75A | +/-3% | 150mV | 82% | 300mm | 140x30x20mm |
| LPH-18-36 | 36V, 0~0.5A | +/-3% | 200mV | 83% | 300mm | 140x30x20mm |
