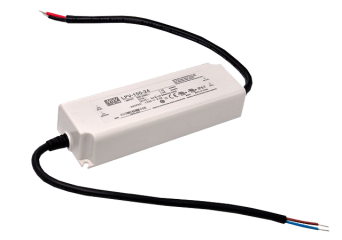

LPV-150
Constant voltage LED power supplies IP67: LPV-150-12,LPV-150-15,LPV-150-24,LPV-150-36,LPV-150-48
- supply voltage: 90-305VAC
- hermetic plastic housing in accordance with the IP67 standard
- constant output voltage regardless of load
- short-circuit, overload and overvoltage protection
- 300VAC surge resistance for 5 seconds
- class II insulation
- cooling with open air circulation
- working temperature -25 ~ + 65 ° C
- compliance with a number of standards and certificates
- low cost, high reliability
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-150-12LED driver 120W 12V 10AIn stockWarranty: €30.00€36.90Login to check your price LPV-150-12LED driver 120W 12V 10AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-150-15LED driver 150W 15V 10AOut of stock Warranty: €30.00€36.90Login to check your price LPV-150-15LED driver 150W 15V 10AAvailability: Out of stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-150-24LED driver 150W 24V 6.3AIn stockWarranty: €30.00€36.90Login to check your price LPV-150-24LED driver 150W 24V 6.3AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-150-36LED driver 150W 36V 4.2AIn stockWarranty: €30.00€36.90Login to check your price LPV-150-36LED driver 150W 36V 4.2AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLPV-150-48LED driver 150W 48V 3.2AIn stockWarranty: €30.00€36.90Login to check your price LPV-150-48LED driver 150W 48V 3.2AAvailability:In stockNet price:€30.00
Description
The LP series voltage power supplies are characterized by a narrow plastic housing with a high tightness class, which allows them to be used in conditions of increased humidity. Wires with a length of 60 cm (30 cm for LPH and LPV-100) are led out of the housing. The power supplies provide a constant output voltage regardless of the load. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Technical Specification
- LPV-150: Constant voltage LED power supplies IP67 90~264VAC - SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| LPV-150-12 | 12V, 0~10A | +/-5% | 200mV | 87% | 300mm | 191x63x37.5mm |
| LPV-150-15 | 15V, 0~10A | +/-5% | 200mV | 88% | 300mm | 191x63x37.5mm |
| LPV-150-24 | 24V, 0~6.3A | +/-5% | 200mV | 89% | 300mm | 191x63x37.5mm |
| LPV-150-36 | 36V, 0~4.2A | +/-5% | 200mV | 89% | 300mm | 191x63x37.5mm |
| LPV-150-48 | 48V, 0~3.2A | +/-5% | 200mV | 90% | 300mm | 191x63x37.5mm |
