P1J DC adapters
Price from €0.50 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MEAN WELL
- wide input voltage range of 90-264VAC
- no-load power consumption <0.3W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature 0 ~ + 50 ° C (-20 ~ + 50 ° C for GS36)
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €13.20 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGS18E09-P1Jwall plug-in power supply EU 18W 9V 2AIn stockWarranty: €13.20€16.24Login to check your price GS18E09-P1Jwall plug-in power supply EU 18W 9V 2AAvailability:In stockNet price:€13.20
Useful products
Description

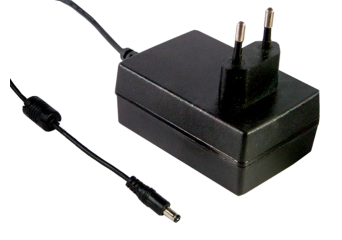

GS series plug-in power supplies are designed to power a wide range of electronic equipment, including switches, converters, routers, laptops, cash registers, landline telephones, printers, etc. They are characterized by very good parameters, compliance with new standards and low power consumption in the state without load.
Technical Specification
- GS18E: Plug-in power supply 15~18W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| GS18E05-P1J | 5V, 0~3A | +/-5% | 50mV | 76.5% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E07-P1J | 7.5V, 0~2A | +/-5% | 80mV | 80% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E09-P1J | 9V, 0~2A | +/-5% | 80mV | 80.5% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E12-P1J | 12V, 0~1.5A | +/-3% | 80mV | 81% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E15-P1J | 15V, 0~1.2A | +/-3% | 100mV | 82% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E18-P1J | 18V, 0~1A | +/-3% | 150mV | 83% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E24-P1J | 24V, 0~0.75A | +/-2% | 180mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E28-P1J | 28V, 0~0.64A | +/-2% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E48-P1J | 48V, 0~0.375A | +/-2% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
