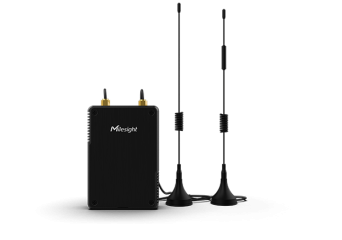

UG56

UG56 is a robust 8-channel indoor LoRaWAN gateway. Adopting SX1302 chip and high-performance quad-core CPU, UG56 supports connection with more than 2000 nodes. UG56 has line of sight up to 15 km and can cover about 2 km in urbanized environment, which is ideally suited to smart building, smart industries and many other indoor applications. UG56 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as The Things Stack, ChirpStack, etc.), built-in network server and Milesight Development Platform for easy deployment.

Features:

• Quad-core industrial processor with big memory
• Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
• 8 half-duplex channels
• Rugged metal enclosure for industrial applications
  Desktop,wall or DIN rail mounting
• Multi backhaul connectivity backups with Ethernet, cellular (4G) and Wi-Fi
• DeviceHub and Milesight Development Platform provide easy and centralized management of remote devices
• Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMV PN/WireGuard
• Compatible with mainstream network servers like The Things Stack, ChirpStack, Actility, AWS, etc.
• Detect and analyze the noise level and provide intuitive diagram for deployment
• Built-in network server and MQTT/HTTP/HTTPS API for easily integration
• Support BACnet/IP and Modbus to integrate LoRaWAN data to BMS/PLC system easily
• Embedded Python SDK for users secondary development
• Fast and user-friendly programming by Node-RED development tool
