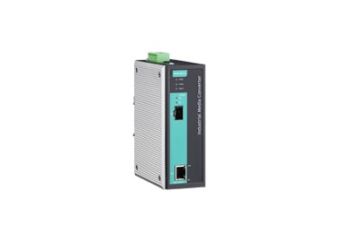

IMC-101G

Industrial Gigabit Ethernet-to-fiber media converter

Manufacturer: MOXA
Manufacturer: MOXA
  •  10/100/1000BaseT(X) and 1000BaseSFP slot supported
  •  Link Fault Pass-Through (LFPT)
  •  Power failure, port break alarm by relay output
  •  Redundant power inputs
  •  -40 to 75°C operating temperature range (-T models)
  •  Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
Price from €457.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IMC-101G
    Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, 0 to 60°C
    In stock
    Warranty:
    €457.00
    €562.11
    Login to check your price
    IMC-101G
    Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, 0 to 60°C
    Availability:
    In stock
    Net price:
    €457.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IMC-101G-T
    Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, -40 to 75°C
    In stock
    Warranty:
    €535.00
    €658.05
    Login to check your price
    IMC-101G-T
    Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, -40 to 75°C
    Availability:
    In stock
    Net price:
    €535.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IMC-101G-IEX
    Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, 0 to 60°C, IECEx Certification Approval
    Out of stock Warranty:
    €527.00
    €648.21
    Login to check your price
    IMC-101G-IEX
    Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, 0 to 60°C, IECEx Certification Approval
    Availability: Out of stock
    Net price:
    €527.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    IMC-101G-T-IEX
    Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, -40 to 75°C, IECEx Certification Approval
    Out of stock Warranty:
    €615.00
    €756.45
    Login to check your price
    IMC-101G-T-IEX
    Industrial Giga Media Converter, 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX, -40 to 75°C, IECEx Certification Approval
    Availability: Out of stock
    Net price:
    €615.00

Accessories

Description

The IMC-101G industrial Gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.

Technical Specification

  • Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector) 1
1000 Mbps fiber (SFP connector) 1
Magnetic Isolation Protection 1.5 kV (built-in)
  • Power Parameters
Input Current 200 mA @ 12 to 45 VDC
Input Voltage 12 to 45 VDC
Overload Current Protection Supported
Power Connector Terminal block
Power Consumption 200 mA @ 12 to 45 VDC
  • Physical Characteristics
Housing Metal
Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight 630 g (1.39 lb)
Installation DIN-rail mounting
  • Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Environmental Testing IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
Safety EN 60950-1, UL 60950-1
Vibration IEC 60068-2-6
Hazardous Locations Standard models: UL/cUL Class I Division 2 Groups A/B/C/D
-IEX models: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx
  • MTBF
Time 500,540 hrs
Standards Telcordia (Bellcore), GB
