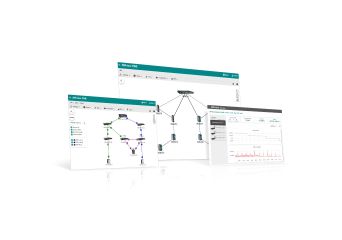

MXview One

Moxa’s MXview One next-generation network management software is designed for monitoring and diagnosing networking devices in industrial networks. MXview One provides an integrated management platform that can discover networking devices and SNMP/IP devices installed on subnets. All selected network components can be managed via a web browser from a local site or through remote access—anytime and anywhere.

In addition, MXview One supports the optional MXview Wireless  and MXview Power  add-on modules. MXview Wireless provides additional advanced functions for wireless applications to monitor and troubleshoot your network, and help you minimize downtime. MXview Power provides additional advanced functions for power applications based on IEC 61850 to monitor and troubleshoot substation networks in real-time.

Visualization

• Discovers up to 2,000 Moxa devices and SNMP/ICMP devices within scan range

• Visualization of redundant link status and device roles of network redundancy protocols

• Security view for the security status of network devices with industrial security standard

• A network management dashboard to view the network status quickly

• Visualization of network traffic loading with color-coded links

• Visualization of managed PoE device power consumption

• SFP list for fiber check

• Wireless device dashboard that shows dynamic AP-client relationships and performance indicator charts for wireless devices

• Roaming playback to review a client's roaming status

• PRP/HSR visualization for power applications compliant with IEC-61850

• MMS protocol to identify related IED devices

Network Diagnostics and Event Notifications

• Detect problems in real-time with SNMP trap/inform, or periodic polling

• Generate trend graphs to track bandwidth utilization and error packet rate statistics, accurate to four decimal places

• Supports Syslog server for centralized message management

• Configurable event notification alarms sent through email

• Multiple options for events with self-defined threshold and duration

• Real-time device availability monitoring

• Provides RESTful API and web widget for integrating MXview One into the existing system

Comprehensive Reports

• Generate an inventory report for each device on the network

• Compile comprehensive device properties report

Centralized Configuration and Firmware Management

• Manage device firmware from a single platform

• In one click, back up the configuration of multiple devices and the entire MXview One database, including topology, job scheduling, events, and device properties

• Scheduling for periodic configuration backup

• Save history of configuration changes

• Comparison tool for checking differences between two configurations

Flexible Licenses

• Demand-based licenses to increase node limit for monitoring

• Optional MXview Power and MXview Wireless add-on licenses to unlock advanced functions
