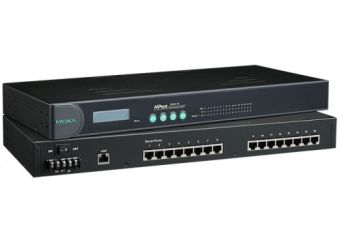

NPort 5650
8 and 16-port RS-232/422/485 rackmount serial device servers
- Standard 19-inch rackmount size
- Easy IP address configuration with LCD panel (excluding wide-temperature models)
- Configure by Telnet, web browser, or Windows utility
- Socket modes: TCP server, TCP client, UDP
- SNMP MIB-II for network management
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Price from €1,078.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
Filter: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-8/EU8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 15KV ESD, 100V or 240VIn stockWarranty: €1,078.00€1,325.94Login to check your price NPort 5650-8/EU8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 15KV ESD, 100V or 240VAvailability:In stockNet price:€1,078.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-16/EU16 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 15KV ESD, 100V or 240VIn delivery Warranty: €1,258.00€1,547.34Login to check your price NPort 5650-16/EU16 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 15KV ESD, 100V or 240VAvailability: In deliveryNet price:€1,258.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-8-M-SC/EU8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Multi mode Fiber, SC connector, 15KV ESD, 100V or 240VIn stockWarranty: €1,269.00€1,560.87Login to check your price NPort 5650-8-M-SC/EU8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Multi mode Fiber, SC connector, 15KV ESD, 100V or 240VAvailability:In stockNet price:€1,269.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-16-M-SC/EU16 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Multi mode Fiber, SC connector, 15KV ESD, 100V or 240VOut of stock Warranty: €1,584.00€1,948.32Login to check your price NPort 5650-16-M-SC/EU16 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Multi mode Fiber, SC connector, 15KV ESD, 100V or 240VAvailability: Out of stockNet price:€1,584.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-8-S-SC/EU8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Single mode Fiber, SC connector, 15KV ESD, 100V or 240VOut of stock Warranty: €1,334.00€1,640.82Login to check your price NPort 5650-8-S-SC/EU8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Single mode Fiber, SC connector, 15KV ESD, 100V or 240VAvailability: Out of stockNet price:€1,334.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-16-S-SC/EU16 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Single mode Fiber, SC connector, 15KV ESD, 100V or 240VIn stockWarranty: €1,651.00€2,030.73Login to check your price NPort 5650-16-S-SC/EU16 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Single mode Fiber, SC connector, 15KV ESD, 100V or 240VAvailability:In stockNet price:€1,651.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-8-T/EU8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 15KV ESD, 100V or 240V, -40~75?Out of stock Warranty: €1,348.00€1,658.04Login to check your price NPort 5650-8-T/EU8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 15KV ESD, 100V or 240V, -40~75?Availability: Out of stockNet price:€1,348.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-16-T/EU16 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 15KV ESD, 100V or 240V, -40~75?Out of stock Warranty: €1,707.00€2,099.61Login to check your price NPort 5650-16-T/EU16 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 15KV ESD, 100V or 240V, -40~75?Availability: Out of stockNet price:€1,707.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-16-HV-T16 Port Device Server, 10/100M Ethernet, 3 in 1, RJ-45 8pin, 88-300 VDC, -40 to 85°COut of stock Warranty: €1,973.00€2,426.79Login to check your price NPort 5650-16-HV-T16 Port Device Server, 10/100M Ethernet, 3 in 1, RJ-45 8pin, 88-300 VDC, -40 to 85°CAvailability: Out of stockNet price:€1,973.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5650-8-HV-T8 Port Device Server, 10/10M Ethernet, 3 in 1, RJ-45 8pin, 88-300 VDC, -40 to 85°COut of stock Warranty: €1,617.00€1,988.91Login to check your price NPort 5650-8-HV-T8 Port Device Server, 10/10M Ethernet, 3 in 1, RJ-45 8pin, 88-300 VDC, -40 to 85°CAvailability: Out of stockNet price:€1,617.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8pin RJ45 to female DB25 connection cable, 150cm, for NPort 5210, 5610Out of stock Warranty: €6.00€7.38Login to check your price 8pin RJ45 to female DB25 connection cable, 150cm, for NPort 5210, 5610Availability: Out of stockNet price:€6.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8pin RJ45 to female DB9 connection cable, 150cm, for NPort 5210, 5610In stockWarranty: €10.00€12.30Login to check your price 8pin RJ45 to female DB9 connection cable, 150cm, for NPort 5210, 5610Availability:In stockNet price:€10.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8pin RJ45 to male DB25 connection cable, 150cm, for NPort 5210, 5610Out of stock Warranty: €6.00€7.38Login to check your price 8pin RJ45 to male DB25 connection cable, 150cm, for NPort 5210, 5610Availability: Out of stockNet price:€6.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8pin RJ45 to male DB9 connection cable, 150cm, for NPort 5210, 5610In stockWarranty: €10.00€12.30Login to check your price 8pin RJ45 to male DB9 connection cable, 150cm, for NPort 5210, 5610Availability:In stockNet price:€10.00
Useful products
5-port entry-level unmanaged Ethernet switches with plastic housing
Price from €51.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Description
With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.
19-Inch Rackmount Device Server
NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.
Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.
Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
| Configuration Options | Telnet Console, Web Console (HTTP/HTTPS), Windows Utility |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP |
| Filter | IGMP v1/v2c |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
| Time Management | SNTP |
- Serial Interface
| Connector | 8-pin RJ45 |
| No. of Ports | 8 or 16 ports |
| Serial Standards | RS-232, RS-422, RS-485 |
| Operation Modes | Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| RS-485 Data Direction Control | ADDCŽ (automatic data direction control) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Power Parameters
| Input Current | NPort 5650-8/8-T/16/16-T: 158 mA @ 100 VAC NPort 5650-8-M-SC/16-M-SC: 174 mA @ 100 VAC NPort 5650-8-S-SC/16-S-SC: 164 mA @ 100 VAC |
| Input Voltage | HV Models: 88 to 300 VDC AC Models: 100 to 240 VAC, 47 to 63 Hz DC Models: ±48 VDC, 20 to 72 VDC, -20 to -72 VDC |
- Reliability
| Automatic Reboot Trigger | Built-in WDT |
- Physical Characteristics
| Housing | Metal |
| Installation | 19-inch rack mounting |
| Dimensions (with ears) | 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
| Dimensions (without ears) | 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) |
| Weight | NPort 5650-8/5650-8-T: 2,310 g (5.09 lb) NPort 5650-8-M-SC: 2,380 g (5.25 lb) NPort 5650-8-S-SC/5650-16-M-SC: 2,440 g (5.38 lb) NPort 5650-8-HV-T: 3,720 g (8.20 lb) NPort 5650-16/5650-16-T: 2,510 g (5.53 lb) NPort 5650-16-S-SC: 2,500 g (5.51 lb) NPort 5650-16-HV-T: 3,820 g (8.42 lb) |
| Interactive Interface | LCD panel display (standard temp. models only) Push buttons for configuration (standard temp. models only) |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | Standard Models: -20 to 70°C (-4 to 158°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMI | CISPR 32, FCC Part 15B Class A |
| EMC | EN 55032/24 |
| EMS | NPort 5650-8/16 Series: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 IEC 61000-4-11 DIPs NPort 5650-8/16-HV Series: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 |
| Medical | EN 60601-1-2 Class B, EN 55011 |
| Safety | UL 60950-1 |
- MTBF
| Time | NPort 5650-8: 692,010 hrs NPort 5650-8-T: 692,010 hrs NPort 5650-8-HV-T: 627,078 hrs NPort 5650-8-M-SC: 678,053 hrs NPort 5650-8-S-SC: 678,053 hrs NPort 5650-16: 473,748 hrs NPort 5650-16-T: 473,748 hrs NPort 5650-16-HV-T: 442,626 hrs NPort 5650-16-M-SC: 467,180 hrs NPort 5650-16-S-SC: 467,180 hrs |
| Standards | AC models: MIL-HDBK-217F HV models: Telcordia (Bellcore) Standard TR/SR |
