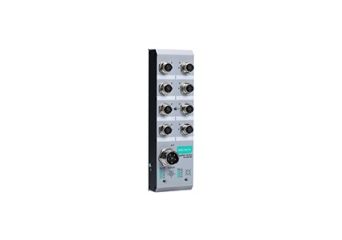

main product photo

TN-5308-4PoE/TN-5308-8PoE

EN 50155 8-port unmanaged Ethernet switches

Manufacturer: MOXA
Manufacturer: MOXA
  •  M12 connectors and IP40 metal housing
  •  Up to 8 IEEE 802.3af compliant PoE and Ethernet combo ports
  •  Supports IEEE 802.3/802.3u/802.3x
  •  Complies with all EN 50155 mandatory test items
  •  -40 to 75°C operating temperature range (-T models)
In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

TN-5308-4PoE/TN-5308-8PoE

TN-5308-4PoE/TN-5308-8PoE

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    TN-5308-4PoE-48
    Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 48 VDC, 0 to 60°C
    		 Out of stock Warranty:
    TN-5308-4PoE-48
    Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 48 VDC, 0 to 60°C
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    TN-5308-4PoE-48-T
    Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 48 VDC, -40 to 75°C
    		 Out of stock Warranty:
    TN-5308-4PoE-48-T
    Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 48 VDC, -40 to 75°C
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    TN-5308-8PoE-48
    Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -25 to 60°C operating temperature
    		 Out of stock Warranty:
    TN-5308-8PoE-48
    Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -25 to 60°C operating temperature
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    TN-5308-8PoE-48-T
    Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -40 to 75°C operating temperature
    In stock
    		Warranty:
    TN-5308-8PoE-48-T
    Unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connectors,1 isolated power inputs(48 VDC), -40 to 75°C operating temperature
    Availability:
    In stock
    -

Accessories

Description

The ToughNet TN-5308 Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. TN-5308 Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308 Series Ethernet switches provide 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. TN-5308 Ethernet switches comply with those EN 50155 requirements that make products more suitable for rolling stock applications, including operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications. TN-5308 PoE Ethernet switches provide 4 or 8 IEEE 802.3af compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port.

Technical Specification

  • Ethernet Interface
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) 8
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.3af for PoE
  • Power Parameters
Input Current TN-5308-4PoE Series: 1.6 A @ 48 VDC
TN-5308-8PoE Series: 2.9 A @ 48 VDC
Input Voltage 48 VDC
Max. PoE Power Output per Port 15.4 W
No. of Power Inputs 1
Operating Voltage 46 to 50 VDC
Power Connector M12 A-coded male connector
  • Physical Characteristics
Housing Metal
IP Rating IP40
Dimensions TN-5308-4PoE Series: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in)
TN-5308-8PoE Series: 60 x 216.6 x 52.9 mm (2.36 x 8.53 x 2.1 in)
Weight TN-5308-4PoE Series: 675 g (1.49 lb)
TN-5308-8PoE Series: 970 g (2.14 lb)
Installation DIN-rail mounting (with optional kit), Wall mounting
  • Environmental Limits
Operating Temperature Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude 2000 m
  • Standards and Certifications
Freefall IEC 60068-2-32
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Environmental Testing IEC 60068-2-1, EN 50155
IEC 60068-2-14, EN 50155
IEC 60068-2-2, EN 50155
IEC 60068-2-30, EN 50155
International Approval RCM
Railway EN 50121-4, EN 50155
Railway Fire Protection EN 45545-2
Safety EN 60950-1, UL 508
Salt Spray Test IEC 60068-2-11, EN 50155
Shock IEC 60068-2-27, IEC 61373, EN 50155
Vibration IEC 60068-2-64, IEC 61373, EN 50155
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time TN-5308-4PoE Series: 252,075 hrs
TN-5308-8PoE Series: 308,392 hrs
Standards Telcordia SR332
