new
CG480-S6053

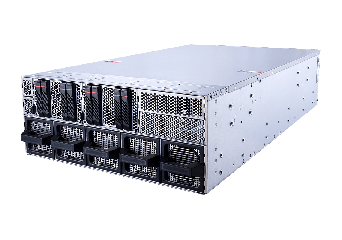

4U industrial server, 2x AMD EPYC 9005, NVIDIA MGX architecture, IPMI 2.0 and DMTF Redfish API
Manufacturer: MSI EPS
Manufacturer: MSI EPS
- 4U (NVIDIA MGX™ architecture)
- Dual AMD EPYC™ 9005 series processors,TDP up to 500W
- (24) DDR5 RDIMM, 12 channels per CPU(1DPC), up to 6400MT/s
- (8) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
- Max (13) PCIe 5.0 x16 expansion slots, supporting up to (8) NVIDIA H200 NVL or RTX PRO 6000 Blackwell Server Edition PCIe GPU cards
- (2) 10GBase-T Ethernet Ports with Intel® X710-AT2 (NCSI supported)
- (1) 1000Base-T Dedicated Server Management Port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
- Dual BIOS & BMC
- TPM2.0 on board
- Hardware Root of Trust available as an optional feature
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
CG480-S6053
Description
Application
- Training, Fine Tuning
- LLM Inference
- NVIDIA Omniverse™
Technical Specification
| Form Factor | 4U |
| Dimensions | 438.5mm(17.2")W x175mm(6.88")H x800mm(31.4")D |
| Processor | Dual AMD EPYC™ 9005 series processors, up to TDP 500W |
| Socket | (2) LGA6096 (Socket SP5) |
| Memory | (24) DDR5 DIMM Slots, 12 channels(1DPC), RDIMM/RIMM-3DS - Max. Frequency 6400MT/s - Max. Capacity per DIMM: 256GB |
| Drive Bays | (8) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays (through PCIe switch) |
| Internal Storage | (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports |
| Expansion Slots | (8) PCIe 5.0 x16 FHFL double wide slots (through PCIe switch) *The system supports 8 x RTX PRO™ 6000 Blackwell Server Edition GPUs at 30°C ambient. (4) PCIe 5.0 x16 FHFL single wide slots (through PCIe switch) (1) PCIe 5.0 x16 FHFL single wide slot (from CPU0) |
| Networking | (2) 10GBase-T Ethernet Ports with Intel® X710-AT2 (NCSI supported) |
| Front I/O | (8) Hot-swap 2.5" U.2 drive bays |
| Rear I/O | (1) 1000Base-T Dedicated Server Management Port (2) 10GBase-T Ethernet ports (1) USB 3.0/2.0 Type-A Port (1) Mini Display port (1) Power LED Button (1) UID LED Button |
| Security | Chassis Intrusion On-board TPM2.0 Hardware Root of Trust - Microchip CEC1736 supported (optional) |
| Server Management | (1) 1000Base-T Dedicated Server Management Port ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Dual BIOS* and dual BMC eMMC for local BMC storage media * Dual BIOS is exclusively implemented to support the Embedded Root of Trust (ERoT). |
| Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Operating humidity: 8% to 85% (non-condensing) Non-operating Temperature: -30°C ~ 60°C (-40°F to 140°F) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Power Supply | (3+1) Redundant 3200W CRPS 80PLUS Titanium Dimension (WxHxL): 73.5 x 40 x 185 mm Rating: AC Input: 100-127Vac, 16A, 50-60Hz Output: Max 1200W, DC +12V/106.6A, +12Vsb/3A AC Input: 200-219Vac, 16A, 50-60Hz Output: Max 3000W, DC +12V/246A, +12Vsb/3A AC Input: 220-240Vac, 16A, 50-60Hz Output: Max 3200W, DC +12V/262.3A, +12Vsb/3A DC Input: 240V, 16A Output: Max 3200W *C19 power cords are required and will be offered as optional accessories. |
| Cooling | (2) EVAC air cooling modules for max. 500W CPU (10) 8080 Hot-swap System Fans |
| Certification | CE, FCC (Class A) |
| Package Contents | (1) Barebone (1) Quick guide (1) Slide rail Kit (2) CPU Coolers (4) CRPS PSUs (4) Chassis handle (8)Power cables PCIe CEM5(12VHPWR) 16-pin power cables(inside system) (1)Power cable for BlueField-3 DPU |
| Optional parts | NVL Bridge Removal Tool Power cords: - C19 1.8m 125V/15A(US, NEMA 5-15P): K33-3001279-I45 - C19 1.8m 250V/15A(US, NEMA 6-15P): K33-3001366-I45 - C19 1.8m 250V/16A(EU): K33-3001283-I45 - C19 1.8m 250V/16A(CN): K33-3001280-I45 - C19 1.8m 250V/15A(JP): K33-3001347-I45 - C19 to C20 1.8m 250V/20A(US): K33-3001422-I45 - C19 to C20 1.8m 250V/16A(EU): K33-3001423-I45 |
