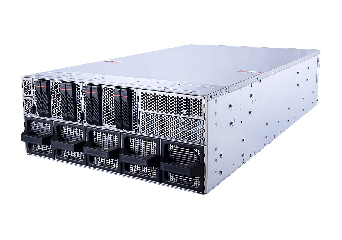

CG481-S6053
4U industrial server, 2x AMD EPYC 9005, NVIDIA MGX architecture, IPMI 2.0 and DMTF Redfish API
Manufacturer: MSI EPS
Manufacturer: MSI EPS
- 4U (NVIDIA MGX architecture)
- Two AMD EPYC™ 9005-series processors, TDP up to 500 W
- (24) DDR5 RDIMM modules, 12 channelsós per processor (1DPC), up to 6400 MT/s
- (8) front, hot-swappable 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) M.2 2280/22110 PCIe 3.0 x2 NVMe ports
- Max. (9) PCIe 5.0 x16 expansion slots, supporting up to (8) NVIDIA H200 NVL PCIe GPUs or RTX PRO 6000 Blackwell Server Edition
- (8) 400G QSFP NVIDIA ConnectX-8 chipsets
- (1) dedicated 1000Base-T server management port with:
- ASPEED AST2600 with support for IPMI 2.0 and DMTF Redfish
- Subtractive BIOS and BMC
- TPM 2.0 on board
- Hardware Root of Trust available as an optional feature
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
CG481-S6053
Description
Applications
- Training, Fine Tuning
- LLM Inference
- NVIDIA Omniverse.
Technical Specification
| Format | 4U |
| Dimensions | 438.5 mm (17.2") W × 175 mm (6.88") H × 800 mm (31.4") D |
| Processor | Two AMD EPYC™ 9005 series processors, TDP up to 500 W |
| Socket (Socket) | (2) LGA6096 (Socket SP5) |
| RAM | (24) DDR5 DIMM slots, 12 channelsów (1DPC), RDIMM/RIMM-3DS – Max. frequency: 6400 MT/s – Max. capacity per DIMM: 256 GB |
| Disk bays | (8) front, hot-swappable 2.5" U.2 PCIe 5.0 x4 NVMe drive bays (4 with CPU0, 4 with CPU1) |
| Internal memory | (2) M.2 2280/22110 PCIe 3.0 x2 NVMe ports |
| Extension slots | (8) PCIe 6.0 x16 FHFL slots, doubleóy width (via PCIe switch) *The system supports 8 RTX PRO™ 6000 Blackwell Server Edition GPU cards at an ambient temperature of 30°C.* (1) PCIe 5.0 x16 FHFL slot, single width (with CPU0) |
| Network | (8) QSFP 400G portsówith NVIDIA ConnectX-8 chipsets |
| Front ports (Front I/O) | (8) hot-swappable 2.5" U.2 drive bays |
| Rear ports (Rear I/O) | (1) dedicated 1000Base-T server management port (8) 400G QSFPóports (1) USB 3.0/2.0 Type-A port (1) Mini DisplayPort (1) button with power LED (1) button with UID LED |
| Safety | Case opening detection Built-in TPM 2.0 Hardware Root of Trust — Microchip CEC1736 support (optional) |
| Server management | (1) dedicated 1000Base-T server management port ASPEED AST2600 with AMI MegaRAC based firmware, supporting IPMI 2.0 and DMTF Redfish API Sub-óible BIOS* and sub-óible BMC eMMC as local BMC storage *Sub-óible BIOS is implemented for Embedded Root of Trust (ERoT) support only. |
| Environment | Operating temperature: 10°C ~ 35°C (50°F ~ 95°F) Humidity during operation: 8% to 85% (non-condensing) Out-of-operation temperature: -30°C ~ 60°C (-40°F to 140°F) Relative humidity outside operation: 8% to 90% (non-condensing) |
| Power supply | (3+1) redundant 3200 W CRPS 80PLUS Titanium power supplies Dimensions (W × H × L): 73.5 × 40 × 185 mm Rating parameters: AC input: 100–127 Vac, 16 A, 50–60 Hz Output: max. 1200 W, DC +12 V/106.6 A, +12 Vsb/3 A AC input: 200–219 Vac, 16 A, 50–60 Hz Output: max. |
| Cooling | (2) EVAC air-cooling modules for processorsós of up to 500 watts (10) hot-swappable 8080 system fans |
| Certificates | CE, FCC (Class A) |
