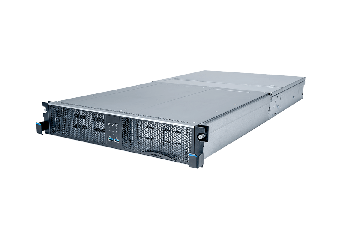

CS280-S3065
2U Chassis, 24x Hot-swap 3.5" SATA/SAS, 2x PCIe 5.0 x16 FHHL slots
- 2U
- Single Intel Xeon® 6700 series processor, TDP up to 350W
- (8) DDR5 RDIMM, 8 channels(1DPC), up to 6400MT/s
- (24) Hot-swap 3.5" SATA/SAS drive bays
- (2) Hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- (2) 25G SFP28 and (2) 1000Base-T Ethernet ports on board
- (2) PCIe 5.0 x16 FHHL slots
- (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- TPM2.0 module are supported as optional
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
CS280-S3065
Description
Application
- Storage Server
Technical Specification
| Form Factor | 2U |
|---|---|
| Dimensions | 17.2"W (438mm) × 3.4"H (87mm) × 34.6"D (880mm) |
| Processor | Single Intel® Xeon® 6700E-series, 6500P-series and 6700P-series processor, TDP up to 350W |
| Socket | (1) Intel LGA 4710 (Socket E2) |
| Chipset | N/A |
| Memory | (8) DDR5 DIMM Slots, 8 channels (1DPC), RDIMM/RIMM-3DS/MCRDIMM - Max. Frequency: RDIMM: 6400MT/s MCRDIMM: 8000MT/s - Max. Capacity per DIMM: 256GB (RDIMM), 64GB (MCRDIMM) *MCRDIMMs are only supported with Intel® Xeon® 6 P-core series processors |
| Drive Bays | (24) Front hot-swap 3.5"/2.5" SATA3.0/SAS12G drive bays* (2) Rear hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays *RAID/HBA card is required for SATA/SAS devices support |
| Internal Storage | (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports |
| Expansion Slots | (2) FHHL PCIe 5.0 x16 slots (1) Mechanical support for Host Adapter (no PCIe signal) |
| Networking | (2) 25G SFP28 Ethernet ports (Intel® E810XXVAM2, NCSI supported) (2) 1000Base-T Ethernet ports (Intel® i210AT, NCSI supported) (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported) *Only one NCSI port is functional at a time. |
| RAID | NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required) |
| Front I/O | (2) USB 3.2 Gen 1 Type-A ports (1) System Power LED button (1) UID LED button (1) Reset button (5) Status LEDs: Fault/LAN/HDD/Left HDD Failure/Right HDD Failure |
| Rear I/O | (2) 25G SFP28 Ethernet ports (2) 1000Base-T Ethernet ports (1) 1000Base-T Dedicated Server Management port (2) USB 3.2 Gen 1 Type-A ports (1) VGA D-Sub port (1) COM RJ45 port (1) UID LED button |
| Security | Chassis intrusion TPM2.0 module supported (optional) |
| Server Management | (1) 1000Base-T Dedicated Server Management port ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Single BIOS and single BMC |
| Power Supply | (1+1) Redundant 1300W CRPS 80 PLUS Titanium Dimension (WxHxL): 73.5 x 40 x 185 mm Rating: AC Input: 100-127Vac, 12A, 47-63Hz Output: Max 1000W, DC +12V/83.33A, +12Vsb/3A AC Input: 200-240Vac, 8A, 47-63Hz Output: Max 1300W, DC +12V/108.3A, +12Vsb/3A *C13 power cords are required and will be offered as optional accessories. |
| Cooling | (1) EVAC air cooling module for max. 350W CPU (6) 6038 Hot-swap system fans |
| Certification | CE, FCC (Class A) |
| Package Contents | (1) Barebone (1) Quick guide (1) Slide rail kit (1) CPU cooler (1) CPU carrier E2A (1) CPU carrier E2B (2) CRPS PSUs (inside system) |
