D1505

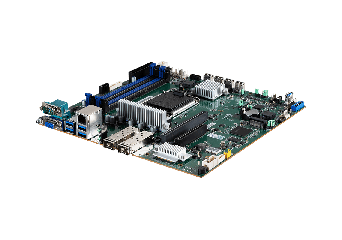

uATX Motherboard, Single Intel Xeon E-2400, 2x 25G SFP28, 4x USB 3.2, 1x VGA, 1x COM
- uATX, 9.6" x 9.6"
- Single socket, LGA1700, Intel Xeon E-2400, C266 PCH
- (4) DDR5 DIMM slots,2DPC, up to 4800MT/s, ECC/non-ECC UDIMM
- (2) 25G SFP28 (Intel E810XXVAM2) Ports
- Up to (8) SATA 3.0 or (4) PCIe4.0/3.0 x4 NVMe Ports
- (1) 2280/22110 PCIe4.0 x4 NVMe M.2 Ports
- (1) 1000Base-T Dedicated Server Management Port
- ASPEED AST2600 with IPMI & DMTF Redfish Support
- Supports ATX PSU
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Description
Application
- Private cloud
- Email server
- Object storage server
- Web-hosting
- Edge computing
- CAD (Computer Assisted Design)
- Backup system application
- Small office/home office server
Technical Specification
| Feature | D1505GB2N-25G-HE |
|---|---|
| Form Factor | Micro-ATX |
| Dimensions | 243.84mm (9.6") x 243.84mm (9.6") |
| Processor | Single Intel® Xeon® E-2400, TDP up to 95W Intel® Pentium® G7400/G7400T, TDP up to 46W |
| Socket | (1) Intel® LGA1700 |
| Chipset | Intel® C266 |
| Memory | (4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM - Max Frequency: 4800MT/s (1DPC), 3600MT/s (2DPC) - Max Capacity per DIMM: 32GB |
| Internal Storage | (1) SlimSAS 4i for (1) PCIe 4.0 x4 NVMe or (4) SATA3.0 (1) SlimSAS 4i for (1) PCIe 3.0 x4 NVMe or (4) SATA3.0 (2) SlimSAS 4i for (2) PCIe 4.0 x4 NVMe (1) M.2 2280/22110 PCIe4.0 x4 |
| Expansion Slots | (1) PCIe 5.0 x16 from CPU (1) PCIe 4.0 x8 (x4 signal) from CPU |
| Networking | (2) 25G SFP28 Ethernet Ports (Intel E810XXVAM2, NCSI supported) *Only one NCSI LAN port can be enabled at a time |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Graphics | (1) D-Sub 15-pin from integrated AST2600 BMC |
| USB | (7) USB3.2 Gen1 Ports |
| Rear I/O | (2) 25G SFP28 Ethernet (1) 1000Base-T Dedicated Server Mgmt (4) USB3.2 Gen1 Type-A (1) VGA D-Sub (1) COM DB9 (1) UID LED Button (1) 1x4 Link/Speed LEDs for SFP28 ports |
| Internal I/O | (1) USB3.2 Gen1 x2 header (1) USB3.2 Gen1 TypeA (1) SPI TPM header (1) COM header (1) Buzzer (1) Intrusion header (1) Front panel header (3) I2C headers (1) IPMB header (1) GPIO header (1) PMBus header (6) 4-pin PWM FAN headers |
| Power Connector | (1) 24-pin ATX (1) 8-pin 12V (1) 4-pin for HDD BP |
| TPM | (1) TPM header with SPI interface |
| Server Management | (1) 1000Base-T Dedicated Server Mgmt (Realtek RTL8211FD-CG) ASPEED AST2600 with AMI MegaRAC (IPMI 2.0, Redfish API) |
| Environment | Operating: 0°C ~ 40°C Non-operating: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
| Certification | CE, FCC (Class A) |
| Optional Parts | TPM2.0 module: TPM20-IR |
