D3060

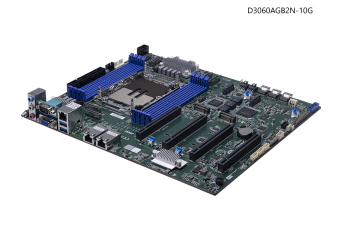

SSI CEB Motherboard, Intel Xeon 6700E/6500P/6700P Seriers, 2x 10GbE/GbE LAN, 2x USB 3.2, 1x COM
- SSI CEB, 12" x 10.5"
- Single Intel Xeon 6700 series processor, TDP up to 350W
- (8) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s
- Max (4) PCIe 5.0 x16 slots
- Max (6) PCIe 5.0 x8 MCIO 8i connectors
- (3) SlimlineSAS 4i for 12 SATA3.0 drives
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- (2) 10Gbase-T Ethernet ports (D3060AGB2N-10G)
(2) 1000Base-T Ethernet ports (D3060GB2N-1G) - (3) 3.5 mm Audio Jacks (Vertical Stack: Line-in / Line-out / Mic-in) (D3060AGB2N-10G)
- (1) M.2 2230 A-E key for Wi-Fi 6/7 module (D3060AGB2N-10G)
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Technical Specification
| Feature | D3060GB2N-1G | D3060AGB2N-10G |
|---|---|---|
| Form Factor | SSI CEB (with ATX screw holes) | |
| Dimensions | 305mm (12") x 267mm (10.5") | |
| Processor | Single Intel Xeon 6700E / 6500P / 6700P series, TDP up to 350W | |
| Socket | (1) Intel LGA 4710 (Socket E2) | |
| Memory | (8) DDR5 DIMM Slots, 8 channels (1DPC), RDIMM/RIMM-3DS/MCRDIMM - Max Frequency: RDIMM 6400MT/s, MCRDIMM 8000MT/s - Max Capacity per DIMM: 256GB (RDIMM), 64GB (MCRDIMM) *MCRDIMMs only supported with Intel® Xeon® 6 P-core |
|
| Internal Storage | (2) M.2 PCIe 5.0 x2 NVMe (2280/22110) (3) SlimlineSAS 4i for 12 SATA3.0 drives |
|
| Expansion Slots | (4) PCIe 5.0 x16 (one slot only with R1S CPU) (6) PCIe 5.0 x8 MCIO 8i (four connectors only with R1S CPU) |
|
| Networking | (2) 1000Base-T Ethernet (Intel i210AT, NCSI supported) *Only one NCSI LAN port can access BMC at a time |
(2) 10GBase-T Ethernet (Intel X710AT2, NCSI supported) *Only one NCSI LAN port can access BMC at a time |
| RAID | NVMe RAID 0/1/5/10 (Intel VROC RAID key required) | |
| Graphics | (1) D-Sub 15-pin port from integrated AST2600 BMC | |
| Audio | N/A | (3) 3.5mm Audio Jacks (Line-in / Line-out / Mic-in) |
| USB | (2) USB 3.2 Gen1 Type-A (1) 20-pin header for 2x USB 3.0 |
|
| Rear I/O | (2) 1000Base-T Ethernet (1) 1000Base-T Mgmt Port (2) USB 3.2 Gen1 Type-A (1) VGA D-Sub (1) COM Port (1) UID LED Button |
(2) 10GBase-T Ethernet (1) 1000Base-T Mgmt Port (2) USB 3.2 Gen1 Type-A (1) VGA D-Sub (1) COM Port (3) Audio Jacks (1) UID LED Button |
| Internal I/O | (1) 20-pin USB3.0 header (1) Buzzer (1) Chassis intrusion (3) I2C headers (1) IPMB header (1) GPIO header (1) PMBus header (1) 80 Port debug header (3) 4-pin FAN headers (2) 8-pin FAN headers |
(1) M.2 2230 A-E key (Wi-Fi 6/7) (1) 20-pin USB3.0 header (1) Buzzer (1) Chassis intrusion (3) I2C headers (1) IPMB header (1) GPIO header (1) PMBus header (1) 80 Port debug header (3) 4-pin FAN headers (2) 8-pin FAN headers |
| Power Connector | (1) 24-pin ATX (2) 8-pin ATX power connectors |
|
| Security | Chassis intrusion (header on board) Optional TPM2.0 (header on board) |
|
| Server Management | (1) 1000Base-T Mgmt Port ASPEED AST2600 w/ AMI MegaRAC (IPMI 2.0, Redfish) Single BIOS, dual BMC |
|
| Environment | Operating: 0°C ~ 40°C Non-operating: -20°C ~ 70°C Humidity: 5% ~ 85% (non-condensing) |
|
| Certification | N/A | CE, FCC (Class A) |
| Optional Parts | TPM2.0 module: TPM20-IRS | |
