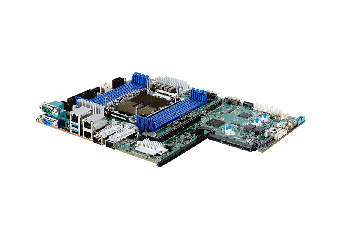

D3065
ATX Motherboard, Intel Xeon 6700E/6500P/6700P Seriers, 2x 25GbE, 2x GbE, 2x USB 3.2, 1x COM
- Extended, 12" x 9.6"
- Single Intel Xeon 6700 series processor, TDP up to 350W
- (8) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s
- (1) PCIe 5.0 x32 slot
- (3) PCIe 5.0 x8 MCIO 8i connectors
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- (2) 25 GbE SFP28 and (2)1000Base-T Ethernet ports
- (1) PCIe 5.0 x16 OCP3.0 slot
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Technical Specification
| Feature | D3065GB4N-25G |
|---|---|
| Form Factor | Extended ATX |
| Dimensions | 305mm (12") x 244mm (9.6") |
| Processor | Single Intel® Xeon® 6700E / 6500P / 6700P, TDP up to 350W |
| Socket | (1) Intel LGA 4710 (Socket E2) |
| Memory | (8) DDR5 DIMM Slots, 8 channels (1DPC), RDIMM/RIMM-3DS/MCRDIMM - Max Frequency: RDIMM 6400MT/s, MCRDIMM 8000MT/s - Max Capacity per DIMM: 256GB (RDIMM), 64GB (MCRDIMM) *MCRDIMMs only supported with Intel® Xeon® 6 P-core series processors |
| Internal Storage | (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports |
| Expansion Slots | (1) PCIe 5.0 x32 slot (3) PCIe5.0 x8 MCIO 8i connectors |
| Networking | (2) 25G SFP28 Ethernet (Intel® E810XXVAM2, NCSI supported) (2) 1000Base-T Ethernet (Intel® i210AT, NCSI supported) (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported) *Only one NCSI LAN port can access BMC at a time |
| RAID | NVMe RAID 0/1/5/10 (Intel® VROC RAID key required) |
| Graphics | (1) D-Sub 15-pin port from integrated AST2600 BMC |
| Audio | None |
| USB | (2) USB 3.2 Gen1 Type-A ports (1) 20-pin header for 2 ports USB3.0 |
| Rear I/O | (2) 25G SFP28 Ethernet ports (2) 1000Base-T Ethernet ports (1) 1000Base-T Dedicated Server Management port (2) USB 3.2 Gen1 Type-A ports (1) VGA D-Sub port (1) COM RJ45 port (1) UID LED button |
| Internal I/O | (1) 20-pin header for 2 USB3.0 ports (1) Buzzer (1) Chassis intrusion header (1) Front panel header (pinout follows chassis front I/O demand) (3) I2C headers (1) IPMB header (1) GPIO header (1) PMBus header (7) FAN headers |
| Power Connector | (1) 24-pin ATX (2) 8-pin ATX power connectors |
| Security | Chassis intrusion (header on board) Optional TPM2.0 module (header on board) |
| Server Management | (1) 1000Base-T Dedicated Server Management port ASPEED AST2600 with AMI MegaRAC (IPMI 2.0, Redfish API) Single BIOS and single BMC |
| Environment | Operating: 0°C ~ 40°C (32°F ~ 104°F) Non-operating: -20°C ~ 70°C (-4°F to 158°F) Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Certification | CE, FCC (Class A) |
| Optional Parts | TPM2.0 module: TPM20-IRS |
