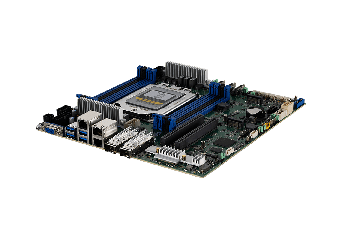

D4040
uATX Motherboard, Single AMD EPYC 8004 Series processors, 2x 25G SFP28, 4x USB 3,2, 1x VGA
- Extended uATX, 9.6" x 10.5"
- Single Socket SP6, supports AMD EPYC 8004 Series processors
- (8) DIMM slots, 2DPC/1DPC, up to 4800/3600MT/s, RDIMM
- (2) 25G SFP28 Ports (Broadcom BCM57502) and (2) 1000Base-T(Intel I210AT) ports (D4040GB2N-25G)
- (16) SATA3.0 ports or (6) PCIe5.0 x4 NVMe Ports
- (2) 2280 PCIe 5.0 x4 NVMe M.2 ports
- (1) 1000Base-T Dedicated Server Management port
- ASPEED AST2600 with IPMI & DMTF Redfish support
- Supports ATX PSU
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Description
Application
- Cloud Computing
- Edge and Telco
- Storage
Technical Specification
| Feature | D4040GB4N-25G | D4040GB2N-25G |
|---|---|---|
| Form Factor | Extended Micro-ATX | |
| Dimensions | 243.84mm (9.6") x 266.7mm (10.5") | |
| Processor | Single AMD EPYC™ 8004 Series processor, up to TDP 225W | |
| Socket | (1) LGA4844 (Socket SP6) | |
| Memory | (8) DDR5 DIMM slots, 6 channel (2DPC/1DPC), ECC RDIMM - Max. Frequency: 4800MT/s (1DPC), 3600MT/s (2DPC) - Max. Capacity per DIMM: 96GB |
(8) DDR5 DIMM slots, 2DPC/1DPC, ECC RDIMM - Max. Frequency: 4800MT/s (1DPC), 3600MT/s (2DPC) - Max. Capacity per DIMM: 96GB |
| Internal Storage | – | (2) MCIO 8i for (4) PCIe 5.0 x4 NVMe or (16) SATA3.0 (1) MCIO 8i for (2) PCIe 5.0 x4 NVMe (2) M.2 2280 PCIe5.0 x4 |
| Expansion Slots | (2) PCIe 5.0 x16 slots | |
| Networking | (2) 25G SFP28 Ethernet Ports (Broadcom BCM57502, NCSI supported) (2) 1000Base-T Ethernet Ports (Intel® I210AT, lower port NCSI supported) |
(2) 25G SFP28 Ethernet Ports (Broadcom BCM57502, NCSI supported) |
| Graphics | (1) D-Sub 15-pin port from integrated AST2600 BMC | – |
| USB | (6) USB3.2 Gen1 Ports | – |
| Rear I/O | (2) 25G SFP28 Ethernet Ports (2) 1000Base-T Ethernet Ports (1) 1000Base-T Dedicated Server Management Port (4) USB3.2 Gen1 Type-A Ports (1) VGA D-Sub Port (1) UID LED Button |
(2) 25G SFP28 Ethernet Ports (1) 1000Base-T Dedicated Server Management Port (4) USB3.2 Gen1 Type-A Ports (1) VGA D-Sub Port (1) UID LED Button |
| Internal I/O | (1) USB3.2 Gen1 x2 header (1) SPI TPM header (2) COM headers (1) Intrusion header (1) Front panel header (2) I2C headers (1) IPMB header (1) GPIO header (1) PMBus header (7) 4-pin PWM FAN headers |
|
| Power Connector | (1) 12-pin + 4-pin for 24-pin ATX power connector (2) 8-pin ATX power connectors (1) 8-pin power connector for HDD BP |
|
| TPM | (1) TPM header with SPI interface Optional TPM2.0 module |
|
| Server Management | (1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) ASPEED AST2600 with AMI MegaRAC firmware supporting IPMI 2.0 and DMTF Redfish API |
|
| Environment | Operating: 0°C ~ 40°C Non-operating: -20°C ~ 70°C Humidity: 5% ~ 85% (non-condensing) |
|
| Certification | CE, FCC (Class A) | – |
| Optional parts | TPM2.0 module: TPM20-IR | |
