new
D4051

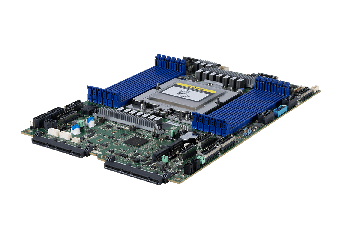

DC-MHS Motherboard, AMD EPYC 9004/9005 Series
- DC-MHS M-DNO Type-2 HPM
- Single AMD EPYC 9004/9005 Series processor, up to TDP 500W
- (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s
- (6) Near-Side PCIe 5.0 x8 MCIO-8i connectors
- (4) Far-Side PCIe 5.0 x8 MCIO-8i connectors
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
- (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported)
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Technical Specification
| Feature | D4051 |
|---|---|
| Form Factor | DC-MHS M-DNO Type-2 HPM |
| Dimensions | 305.59mm x 210mm |
| Processor | Single AMD EPYC 9004 and 9005 Series processor, up to TDP 500W |
| Socket | (1) LGA6096 (Socket SP5) |
| Memory | (12) DDR5 DIMM Slots, 12 channels (1DPC), RDIMM/RIMM-3DS - Max. Frequency: 6400MT/s - Max. Capacity per DIMM: 256GB |
| Internal Storage | (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports |
| Expansion Slots | (6) Near-Side PCIe 5.0 x8 MCIO-8i connectors (4) Far-Side PCIe 5.0 x8 MCIO-8i connectors |
| Networking | (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported) |
| RAID | N/A |
| Graphics | Support via DC-SCM module MGT1 |
| USB | (1) 20pin-header for 2x USB3.0 ports |
| Front I/O | Support via DC-SCM module MGT1 |
| Internal I/O | (1) Edge slot for DC SCM2.0 module (MGT1) (1) Buzzer (1) Chassis Intrusion Header (3) I2C headers (1) 20pin-header for 2x USB3.0 (1) DC MHS Control Panel Header for front panel (1) 4-pin header for liquid cooler leaking sensor (1) 6-pin header for cold plate pump (1) 4-pin FAN header (1) PDB management header |
| Power Connector | (4) 12-pin PICPWR connectors (1) 6-pin PICPWR connector (2) 4-pin power connectors for PCIe slot power supply |
| Security | Chassis Intrusion (header on board) Support via DC-SCM module MGT1: - TPM2.0 module (optional) - ASPEED AST1060 Hardware Root of Trust module (optional) |
| Server Management | Support via DC-SCM module MGT1: (1) 1000Base-T Dedicated Server Management Port ASPEED AST2600 with AMI MegaRAC firmware (IPMI 2.0 & DMTF Redfish API) Dual BIOS and dual BMC eMMC for local BMC storage |
| Environment | Operating: 0°C ~ 35°C (50°F ~ 95°F) Non-operating: -20°C ~ 70°C (-4°F to 158°F) Non-operating Humidity: 5% ~ 85% (non-condensing) |
| Certification | CE, FCC (Class A) |
| Optional Parts | DC-SCM module: MGT1 TPM2.0 module: TPM20-IRS RoT module: ROT1 |
