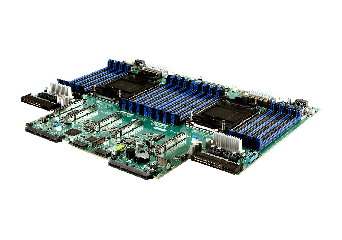

D5062
DC-MHS Motherboard, Dual Intel Xeon 6700 Series
- DC-MHS M-DNO M-FLW HPM
- Dual Intel Xeon 6700 series processors, TDP up to 350W
- (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (5) PCIe 5.0 x16 SFF-TA-1033 MXIO slots
- (8) Far-Side PCIe5.0 x8 MCIO 8i connectors
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- (2) E1.S 9.5mm PCIe 5.0 x4 ports
- (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported)
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Technical Specification
| Form Factor | DC-MHS M-FLW |
|---|---|
| Dimensions | 423mm x 348mm |
| Processor | Dual Intel Xeon 6700E-series, 6500P-series and 6700P-series processors, TDP up to 350W |
| Socket | (2) LGA4710 (Socket E2) |
| Memory | (32) DDR5 DIMM Slots, 8 channels per CPU (2DPC), RDIMM / RDIMM-3DS / MRDIMM - Max. Frequency: RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) - MRDIMM: 8000MT/s (only 1DPC, supported with Xeon 6 P-core) - Max. Capacity per DIMM: 256GB (RDIMM), 64GB (MRDIMM) |
| Internal Storage | (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (CPU0) (2) E1.S 9.5mm PCIe 5.0 x4 ports (CPU1) |
| Expansion Slots | (5) PCIe 5.0 x16 SFF-TA-1033 MXIO slots (2 from CPU0, 3 from CPU1) (8) Far-Side PCIe 5.0 x8 MCIO 8i connectors (4 from CPU0, 4 from CPU1) |
| Networking | (1) PCIe 5.0 x16 OCP3.0 slot (from CPU0, NCSI supported) |
| RAID | NVMe RAID 0/1/5/10 support (Intel VROC RAID key required) |
| Graphics | Support via DC-SCM module MGT1 |
| USB | (1) 20pin-header for 2 ports USB3.0 |
| Front I/O | Support via DC-SCM module MGT1 |
| Internal I/O | (1) Edge slot for DC SCM2.0 module (MGT1) (1) Buzzer (1) Chassis Intrusion Header (4) I2C headers (1) 20pin-header for 2x USB3.0 (2) DC MHS Control Panel Headers for front panel (one left, one right) (1) 4-pin header for liquid cooler leaking sensor (2) 4-pin FAN headers |
| Power Connector | (2) CRPS/M-CRPS 73.5 power connectors (6) 12-pin PICPWR connectors |
| Security | Chassis Intrusion (header on board) Support via DC-SCM module MGT1: - TPM2.0 module (optional) - ASPEED AST1060 Hardware Root of Trust module (optional) |
| Server Management | Support via DC-SCM module MGT1: (1) 1000Base-T Dedicated Server Management Port ASPEED AST2600 with AMI MegaRAC firmware (IPMI 2.0, DMTF Redfish API) Dual BIOS and dual BMC eMMC for local BMC storage |
| Environment | Operating Temp: 0°C ~ 35°C (50°F ~ 95°F) Non-operating Temp: -20°C ~ 70°C (-4°F ~ 158°F) Non-operating Humidity: 5% to 85% (non-condensing) |
| Certification | CE, FCC (Class A) |
| Optional Parts | DC-SCM module: MGT1 TPM2.0 module: TPM20-IRS RoT module: ROT1 |
