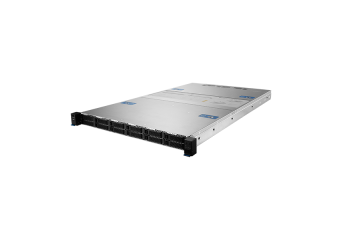

S1201b
1U chassis, Dual 3rd Gen Intel Xeon, 3x PCIe Add-on Cards
- Dual 3rd Gen Intel Xeon Scalable processors
- 32 DIMMs; 8 channel 2933/3200MHz, RDIMM/LRDIMM/BSP, w/ ECC up to 6TB, Supports Intel Optane DCPMM
- 3 PCIe Add-on Cards
- Flexible LAN options: standard PCIe type and OCP 3.0 NIC are supported
- 12 NVMe/SAS/SATA Hybrid Hot-swap drive bays
- CRPS Redundant PSU 800W
- Dual BIOS & BMC
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Description
Application
- Cloud Computing Service
- Content Delivery Network
- Network Function Virtualization
- 5G Core and Edge Telecom Micro Data Center
- AI Inference and Machine Learning
Technical Specification
| Feature | S1201b |
|---|---|
| Form Factor | 1U |
| Dimensions | 17.2" W (438mm) × 1.7" H (43.2mm) × 30.3" D (770mm) |
| Processor | Dual 3rd Gen Intel Xeon Scalable Processors, up to 40C, TDP 205W (270W condition) |
| Chipset | Intel C621A |
| Memory | 32 × DIMM slots, 8 channel DDR4 2933/3200MHz RDIMM/LRDIMM/BPS up to 6TB |
| Drive Bays | 12 × 2.5" NVMe/SAS/SATA Hybrid Hot-swap drive bays |
| Internal Storage | 2 × M.2 M-key (2280/22110) 1 × microSD |
| Expansion Slots | 3 × PCIe 3.0 Low profile / Half length |
| Networking | 1 × GbE RJ45 Mgmt. port (Realtek RTL8211E-VB) OCP3.0 Copper or Fiber Mezz. |
| RAID | SAS/SATA 12Gb/s by LSI3008IR/IMR (MSI MEZ-200a/200b) Intel VROC7.0 based on Intel VMD2.0 |
| Front I/O | 1 × Power button 1 × UID button 1 × USB3.0 port 1 × USB2.0 port |
| Indicators | 1 × LED: PWR_SW 1 × LED: UID_SW 1 × LED: Global Alarm (Fan/PWR) 2 × LEDs: NIC Link 1 × LED: HDD |
| Rear I/O | 3 × USB3.0 ports 2 × GbE RJ45 ports (One for Mgmt) 1 × VGA port 1 × Serial RJ45 port 1 × UID LED button (with BMC reset function) |
| Security | TPM 2.0 PFR (optional) Case intrusion switch |
| Server Management | Aspeed AST2600 IPMI2.0 with iKVM |
| Environment | Operating Temperature: 0°C ~ 35°C Non-operating Temperature: -20°C ~ 70°C Non-operating Humidity: 5% ~ 85% (non-condensing) |
| Power Supply | CRPS 800W 1+1 hot-plug redundant PSU |
| Cooling | 2 × Passive CPU heatsink 8 × 40mm × 56mm non Hot-swap fans |
| Certification | FCC (Class A) |
