S1205

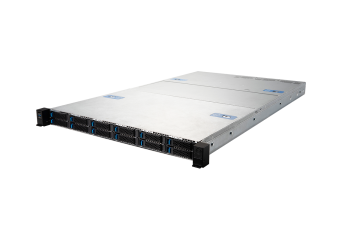

1U chassis, 12x Hot-swap 2.5” U.2 NVMe, 2x 10G SFP+ Ethernet Ports
- 1U
- Dual Intel LGA4677 sockets, support 4th/5th Generation Intel Xeon Scalable Processors
- (32) DDR5 DIMM Slots, 2DPC, upto 5600 MT/s (1DPC) and 4400 MT/s (2DPC), RDIMM/RIMM-3DS
- (12) Hot-swap 2.5” front drive bays support U.2 PCIe 4.0 NVMe
- (2) PCIe 4.0 x16 expansion slots
- (1) M.2 slot supports NIC module with NCSI funtion
- (1) OCP3.0 PCIe 4.0 slot, supports NCSI funtion (S1205-01)
(2) 10G SFP+ Ethernet Ports (Intel® X710-BM2) through OCP3.0 NIC OCP-321 (S1205-01-10G) - (1) 1000Base-T Dedicated Server Management Port
- ASPEED AST2600 with IPMI & DMTF Redfish Support
- Dual BIOS and BMC
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Technical Specification
| Specification | S1205-01 | S1205-01-10G |
|---|---|---|
| Form Factor | 1U | 1U |
| Dimensions | 438mm (17.2") × 43.2mm (1.7") × 770mm (30.3") | 438mm (17.2") × 43.2mm (1.7") × 770mm (30.3") |
| Processor | Dual 4th/5th Gen Intel Xeon Scalable Processors, TDP up to 205W | Dual 4th/5th Gen Intel Xeon Scalable Processors, TDP up to 205W |
| Socket | - | (2) Intel LGA4677 |
| Chipset | Intel C741 | Intel C741 |
| Memory | (32) DDR5 DIMM Slots, 8 channels per CPU (2DPC), RDIMM/3DS - 5th Gen Xeon: 5600 MT/s (1DPC), 4400 MT/s (2DPC) - 4th Gen Xeon: 4800 MT/s (1DPC), 4400 MT/s (2DPC) - Max capacity per DIMM: RDIMM 96GB, RDIMM-3DS 256GB |
(32) DDR5 DIMM Slots, 8 channels per CPU (2DPC), RDIMM/3DS - 5th Gen Xeon: 5600 MT/s (1DPC), 4400 MT/s (2DPC) - 4th Gen Xeon: 4800 MT/s (1DPC), 4400 MT/s (2DPC) - Max capacity per DIMM: RDIMM 96GB, RDIMM-3DS 256GB |
| Drive Bays | (12) Hot-swap 2.5" U.2 PCIe 4.0 NVMe | (12) Hot-swap 2.5" U.2 PCIe 4.0 NVMe |
| Internal Storage | (2) M.2 2280/22110 PCIe 3.0 x2 ports from PCH | (2) M.2 2280/22110 PCIe 3.0 x2 ports from PCH |
| Expansion Slots | Riser 1: (1) PCIe 4.0 x16 from CPU0 (HHHL) Riser 2: (1) PCIe 4.0 x16 from CPU1 (HHHL) Riser 4: (1) PCIe 3.0 x16 from CPU1 (HHHL) OCP3.0: (1) PCIe 4.0 x16 from CPU0, supports NCSI |
Riser 1: (1) PCIe 4.0 x16 from CPU0 (HHHL) Riser 2: (1) PCIe 4.0 x16 from CPU1 (HHHL) Riser 4: (1) PCIe 3.0 x16 from CPU1 (HHHL) OCP3.0: (1) PCIe 4.0 x16 from CPU0, supports NCSI |
| Networking | No onboard LAN (2) 1000Base-T Ethernet Ports with optional M.2 LAN module NAD-101 |
(2) 10G SFP+ Ethernet Ports (Intel X710-BM2) through OCP3.0 NIC OCP-321 (2) 1000Base-T Ethernet Ports with optional M.2 LAN module NAD-101 |
| RAID | Intel SATA RAID 0/1/5/10, (1) VROC header for Intel VROC key | Intel SATA RAID 0/1/5/10, (1) VROC header for Intel VROC key |
| Front I/O | (12) Hot-swap 2.5" drive bays (2) USB 2.0 Type-A (1) System Power LED button (1) UID LED button (1) Reset button (4) Status LEDs: Fault/LAN/M.2 |
(12) Hot-swap 2.5" drive bays (2) USB 2.0 Type-A (1) System Power LED button (1) UID LED button (1) Reset button (4) Status LEDs: Fault/LAN/M.2 |
| Rear I/O | (1) 1000Base-T Dedicated Server Management port (2) USB 2.0 Type-A (1) VGA D-Sub (1) COM RJ45 (1) UID LED button |
(1) 1000Base-T Dedicated Server Management port (2) USB 2.0 Type-A (1) VGA D-Sub (1) COM RJ45 (1) UID LED button |
| TPM | (1) TPM header with SPI interface | (1) TPM header with SPI interface |
| Security | TPM 2.0 | TPM 2.0 |
| Server Management | ASPEED AST2600 with AMI MegaRAC firmware (IPMI 2.0, Redfish) Dual BIOS and BMC (1) 1000Base-T Dedicated Management Port (Realtek RTL8211FD-CG) (1) MicroSD card slot for BMC log |
ASPEED AST2600 with AMI MegaRAC firmware (IPMI 2.0, Redfish) Dual BIOS and BMC (1) 1000Base-T Dedicated Management Port (Realtek RTL8211FD-CG) (1) MicroSD card slot for BMC log |
| Environment | Operating Temperature: 0°C ~ 35°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
Operating Temperature: 0°C ~ 35°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
| Power Supply | (1+1) Redundant 1300W CRPS 80+ Platinum | (1+1) Redundant 1300W CRPS 80+ Platinum |
| Cooling | (2) Passive air cooling modules for max. 205W CPU (8) 4056 Easy-Swap System Fans |
(2) Passive air cooling modules for max. 205W CPU (8) 4056 Easy-Swap System Fans |
| Certification | CE, FCC (Class A) | CE, FCC (Class A) |
| Package Contents | (1) Barebone G1205-01 (1) Quick guide (1) Slide rail kit (2) CPU coolers (2) CRPS PSUs (2) Power cables |
(1) Barebone G1205-01-10G (1) Quick guide (1) Slide rail kit (2) CPU coolers (2) CRPS PSUs (2) Power cables (1) OCP3.0 NIC OCP-321 Kit |
| Parts List | (1) Quick guide: G52-S3222X2-Q13 (1) Slide rail kit: E21-S258030-C27 (2) CPU coolers: E31-0807290-A87 (2) CRPS PSUs: S93-0913150-S14 (2) Power cable: K33-3001002-I45 for NA |
(1) Quick guide: G52-S3222X2-Q13 (1) Slide rail kit: E21-S258030-C27 (2) CPU coolers: E31-0807290-A87 (2) CRPS PSUs: S93-0913150-S14 (2) Power cable: K33-3001002-I45 for NA (1) OCP3.0 NIC OCP-321 Kit: 919-S258D-124 |
