S1206

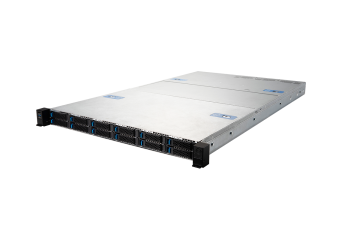

1U chassis, 12x Front Hot-swap 2.5” U.2 NVMe, 2x 10G SFP+ Ethernet Ports
- 1U
- Dual Socket SP5, supports AMD EPYC 9004/9005 series processors
- (24) DDR5 DIMM Slots, 1DPC, upto 6400MT/s, RDIMM/RIMM-3DS
- (12) Hot-swap 2.5” front drive bays support U.2 PCIe 4.0 NVMe
- (2) PCIe 5.0 x16 expansion slots
- (2) 1000Base-T Ethernet Ports (Intel I350AM2) on motherboard support NCSI function (S1206-01)
- (1) OCP3.0 PCIe 5.0 slot, supports NCSI funtion (S1206-01)
- (2) 10G SFP+ Ethernet Ports (Intel X710-BM2) through OCP3.0 NIC OCP-321 (S1206-02-10G)
- (1) 1000Base-T Dedicated Server Management Port
- ASPEED AST2600 with IPMI & DMTF Redfish Support
- Dual BIOS and BMC
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Description
Application for S1206-01:
- Cloud Computing Service
- Content Delivery Network
- Network Function Virtualization
- 5G Core and Edge Telecom Micro Data Center
- AI Inference and Machine Learning
Technical Specification
| Specification | S1206-01 | S1206-02-10G |
|---|---|---|
| Form Factor | 1U | 1U |
| Dimensions | 438mm(17.2") W × 43.2mm(1.7") H × 770mm(30.3") D | 438mm(17.2") W × 43.2mm(1.7") H × 770mm(30.3") D |
| Processor | Dual AMD EPYC™ 9004 / 9005 series, up to TDP 210W *Optional EVAC CPU cooler supports up to TDP 360W | Dual AMD EPYC™ 9004 / 9005 series, up to TDP 210W *Optional EVAC CPU cooler supports up to TDP 360W |
| Socket | (2) AMD Socket SP5 | (2) AMD Socket SP5 |
| Chipset | N/A | - |
| Memory | (24) DDR5 DIMM Slots, 12 channels per CPU (1DPC), RDIMM/RDIMM-3DS - Max Frequency: 6400MT/s - Max per DIMM: RDIMM 96GB, RDIMM-3DS 256GB | (24) DDR5 DIMM Slots, 12 channels per CPU (1DPC), RDIMM/RDIMM-3DS - Max Frequency: 6400MT/s - Max per DIMM: RDIMM 96GB, RDIMM-3DS 256GB |
| Drive Bays | (12) Hot-swap 2.5" U.2 PCIe 4.0 NVMe | (12) Hot-swap 2.5" U.2 PCIe 4.0 NVMe |
| Internal Storage | (2) M.2 2280 PCIe 3.0 x2 ports from CPU0 | (2) M.2 2280 PCIe 3.0 x2 ports from CPU0 |
| Expansion Slots |
Riser 1: (1) PCIe 5.0 x16 from CPU0 (HHHL) Riser 2: (1) PCIe 5.0 x16 from CPU1 (HHHL) Riser 4: (1) PCIe 3.0 x16 from CPU1 (HHHL) OCP3.0: (1) PCIe 5.0 x16 from CPU0, supports NCSI |
Riser 1: (1) PCIe 5.0 x16 from CPU0 (HHHL) Riser 2: (1) PCIe 5.0 x16 from CPU1 (HHHL) Riser 4: (1) PCIe 3.0 x16 from CPU1 (HHHL) OCP3.0: (1) PCIe 5.0 x16 from CPU0, supports NCSI |
| Networking | (2) 1000Base-T Ethernet Ports (Intel® I350AM2) | (2) 10G SFP+ Ethernet Ports (Intel® X710-BM2) via OCP3.0 NIC OCP-321 |
| RAID | N/A | - |
| Front I/O |
(12) Hot-swap 2.5" drive bays (1) USB 3.0 Type-A (1) USB 2.0 Type-A (1) System Power LED Button (1) UID LED Button (1) Reset Button (4) Status LEDs: Fault/LAN/M.2 |
(12) Hot-swap 2.5" drive bays (1) USB 3.0 Type-A (1) USB 2.0 Type-A (1) System Power LED Button (1) UID LED Button (1) Reset Button (4) Status LEDs: Fault/LAN/M.2 |
| Rear I/O |
(3) GbE RJ45 ports (1 for Mgmt) (2) USB 3.0 ports (1) VGA port (1) Serial RJ45 port (1) UID LED button (with BMC reset) |
(1) 1000Base-T Dedicated Mgmt port (2) USB 3.0 Type-A (1) VGA D-Sub (1) COM RJ45 (1) UID LED button |
| TPM | - | (1) TPM header with SPI interface |
| Security | TPM 2.0 | TPM 2.0 |
| Server Management |
ASPEED AST2600 with AMI MegaRAC (IPMI 2.0, Redfish) Dual BIOS & BMC (1) 1000Base-T Mgmt Port (Realtek RTL8211FD-CG) (1) MicroSD slot for BMC log |
ASPEED AST2600 with AMI MegaRAC (IPMI 2.0, Redfish) Dual BIOS & BMC (1) 1000Base-T Mgmt Port (Realtek RTL8211FD-CG) (1) MicroSD slot for BMC log |
| Environment |
Operating Temp: 0°C ~ 35°C Non-operating Temp: -20°C ~ 70°C Non-operating RH: 5% ~ 85% (non-condensing) |
Operating Temp: 0°C ~ 35°C Non-operating Temp: -20°C ~ 70°C Non-operating RH: 5% ~ 85% (non-condensing) |
| Power Supply |
(1+1) Redundant 1300W CRPS 80+ Platinum Dimensions: 73.5 × 40 × 185 mm Input: 100-240Vac, 12A, 50-60Hz Output: Max 1300W, DC +12V/105.4A, +12Vsb/3A *C13 cords (US/EU included) |
(1+1) Redundant 1300W CRPS 80+ Platinum Dimensions: 73.5 × 40 × 185 mm Input: 100-240Vac, 12A, 50-60Hz Output: Max 1300W, DC +12V/105.4A, +12Vsb/3A *C13 cords (US/EU included) |
| Cooling | (2) Passive air modules for up to 210W CPU (8) 4056 Easy-Swap Fans | (2) Passive air modules for up to 210W CPU (8) 4056 Easy-Swap Fans |
| Certification | CE, FCC (Class A) | CE, FCC (Class A) |
| Package Contents |
(1) Barebone S1206-01 (1) Quick guide (1) Slide rail kit (2) CPU coolers (2) PSUs (2) C13 Power cords (US 125V/10A) (2) C13 Power cords (EU 250V/16A) |
(1) Barebone S1206-02-10G (1) Quick guide (1) Slide rail kit (2) CPU coolers (2) PSUs (1) OCP3.0 NIC OCP-321 Kit (2) C13 Power cords (US 125V/10A) (2) C13 Power cords (EU 250V/16A) |
| Parts List |
(1) Quick guide: G52-S3122X2-Q13 (1) Slide rail Kit: E21-S258030-C27 (2) CPU Coolers: E31-0807220-A87 (2) CRPS PSUs: S93-0913150-S14 (2) Power cables: K33-3001002-I45 for NA |
(1) Quick guide: G52-S3122X2-Q13 (1) Slide rail Kit: E21-S258030-C27 (2) CPU Coolers: E31-0807220-A87 (2) CRPS PSUs: S93-0913150-S14 (2) Power cables: K33-3001002-I45 for NA (1) OCP3.0 NIC OCP-321 Kit: 919-S258D-124 |
