new
S2205

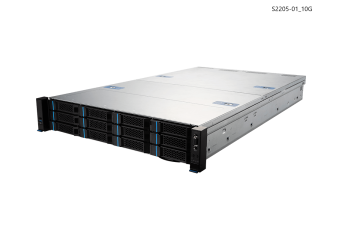

2U chassis, up to 24x Front Hot-swap 2.5" U.2 NVMe, 4x PCIe 4.0, 2x 10G SFP+
- 2U
- Dual Intel LGA4677 sockets, support 4th/5th Generation Intel Xeon Scalable Processors
- (32) DDR5 DIMM Slots, 2DPC, upto 5600 MT/s (1DPC) and 4400 MT/s (2DPC), RDIMM/RIMM-3DS
- (12) Hot-swap 3.5"/2.5" drive bays support SATA 3.0/SAS/U.2 PCIe 4.0 NVMe (S2205-01)
- (7) PCIe 4.0 expansion slots including (3) PCIe4.0 x16 FH slots can support max 3 GPU cards with TDP up to 450W and (4) PCIe4.0 x16(x8 signal) slots (S2205-01)
- (24) Front Hot-swap 2.5" drive bays support U.2 PCIe 4.0 NVMe with (8) bays also support SATA 3.0/SAS (S2205-04)
- (4) Hot-swap 2.5" drive bays support SATA 3.0 (S2205-04)
- (4) PCIe 4.0 expansion slots (S2205-04)
- (1) M.2 slot supports NIC module with NCSI funtion
- (1) OCP3.0 PCIe 4.0 slot, supports NCSI funtion (S2205-01, S2205-04)
(2) 10G SFP+ Ethernet Ports (Intel X710-BM2) through OCP3.0 NIC OCP-321 (S2205-01-10G, S2205-04-10G) - (1) 1000Base-T Dedicated Server Management Port
- ASPEED AST2600 with IPMI & DMTF Redfish Support
- Dual BIOS and BMC
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Description
Application for S2205-01 and S2205-04:
- Cloud Computing Service
- Content Delivery Network
- Network Function Virtualization
- 5G Core and Edge Telecom Micro Data Center
- AI Inference and Machine Learning
Technical Specification
| Cecha | S2205-01-10G | S2205-04-10G | S2205-04 | S2205-01 |
|---|---|---|---|---|
| Form Factor | 2U | |||
| Dimensions | 438mm (17.2") W × 87mm (3.4") H × 770mm (30.3") D | |||
| Processor | Dual 4th/5th Gen Intel® Xeon® Scalable, TDP up to 350W | |||
| Socket | (2) Intel LGA4677 | — | ||
| Chipset | Intel® C741 | |||
| Memory | (32) DDR5 DIMM slots, 8 channels/CPU (2DPC), RDIMM/3DS Max freq: 5th Gen – 5600MT/s (1DPC), 4400MT/s (2DPC); 4th Gen – 4800MT/s (1DPC), 4400MT/s (2DPC) Max per DIMM: RDIMM 96GB, 3DS 256GB |
|||
| Drive Bays (Front) | (12) 3.5"/2.5" SATA/SAS/U.2 | (24) 2.5" U.2 NVMe + (8) SATA/SAS | (24) 2.5" U.2 NVMe + (8) SATA/SAS | (12) 3.5"/2.5" SATA/SAS/U.2 |
| Drive Bays (Rear) | — | (4) 2.5" SATA | (4) 2.5" SATA | — |
| Internal Storage | (2) M.2 2280/22110 PCIe 3.0 x2 (PCH) | |||
| Expansion Slots | Riser 1: (1) PCIe 4.0 x16 FHFL GPU + (2) PCIe 4.0 x16(x8) FHHL Riser 2: (1) PCIe 4.0 x16 FHFL GPU + (2) PCIe 4.0 x16(x8) FHHL Riser 3: (1) PCIe 4.0 x16 FHFL GPU OCP 3.0: (1) PCIe 4.0 x16 |
Riser 1: (1) PCIe 4.0 x16 FHHL Riser 2: (1) PCIe 4.0 x16 FHHL + (2) PCIe 4.0 x16(x8) FHHL OCP 3.0: (1) PCIe 4.0 x16 |
Riser 1: (1) PCIe 4.0 x16 FHHL Riser 2: (1) PCIe 4.0 x16 FHHL + (2) PCIe 4.0 x16(x8) FHHL OCP 3.0: (1) PCIe 4.0 x16 |
Riser 1: (1) PCIe 4.0 x16 FHFL GPU + (2) PCIe 4.0 x16(x8) FHHL Riser 2: (1) PCIe 4.0 x16 FHFL GPU + (2) PCIe 4.0 x16(x8) FHHL Riser 3: (1) PCIe 4.0 x16 FHFL GPU OCP 3.0: (1) PCIe 4.0 x16 |
| Networking | (2) 10G SFP+ + (2) 1GBase-T (opt. M.2) | (2) 10G SFP+ + (2) 1GBase-T (opt. M.2) | No onboard LAN + (2) 1GBase-T (opt. M.2) | No onboard LAN + (2) 1GBase-T (opt. M.2) |
| RAID | Intel® SATA RAID 0/1/10/5 + VROC header | |||
| Front I/O | (12) bays + USB 2.0 ×2, VGA, Power/UID/Reset, 4×LED | (24) bays + USB 2.0 ×2, VGA, Power/UID/Reset, 4×LED | (24) bays + USB 2.0 ×2, VGA, Power/UID/Reset, 4×LED | (12) bays + USB 2.0 ×2, VGA, Power/UID/Reset, 4×LED |
| Rear I/O | Mgmt 1G, USB 2.0 ×2, VGA, COM RJ45, UID | (4) bays + Mgmt 1G, USB 2.0 ×2, VGA, COM RJ45, UID | (4) bays + Mgmt 1G, USB 2.0 ×2, VGA, COM RJ45, UID | Mgmt 1G, USB 2.0 ×2, VGA, COM RJ45, UID |
| TPM | (1) TPM header with SPI | |||
| Security | TPM 2.0 | |||
| Server Management | ASPEED AST2600 + AMI MegaRAC, IPMI 2.0 & DMTF Redfish API, Dual BIOS & BMC, Mgmt Port, MicroSD log | |||
| Environment | Operating: 0–35°C; Non-op: -20–70°C; Humidity: 5–85% (non-condensing) | |||
| Power Supply | (1+1) 2000W CRPS 80+ Platinum | (1+1) 1600W CRPS 80+ Platinum | (1+1) 1600W CRPS 80+ Platinum | (1+1) 2000W CRPS 80+ Platinum |
| Cooling | (2) EVAC, (6) 6038 Fans, air duct (GPU) | (2) EVAC, (6) 6038 Fans, 2U air duct | (2) EVAC, (6) 6038 Fans, 2U air duct | (2) EVAC, (6) 6038 Fans, air duct (GPU) |
| Certification | CE, FCC (Class A) | |||
