NRU-240S-AWP
IP66 Waterproof AGX Orin Computer, 4x PoE+ GbE, and 1x 10GbE Ports, 2x CANBus
Manufacturer: Neousys Technology
Manufacturer: Neousys Technology
- Powered by NVIDIA Jetson AGX Orin SoM
- IP66 waterproof and dustproof
- -25°C to 70°C fanless operation
- 4x PoE+ GbE and 1x 10GBASE-T via M12 X-coded connectors
- 2x isolated CAN 2.0, 1x RS232, and 1x isolated RS485 via M12 A-coded connectors
- 1x system monitoring port by automotive-grade MCU
- 8V to 48V wide-range DC input with built-in ignition power control
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only

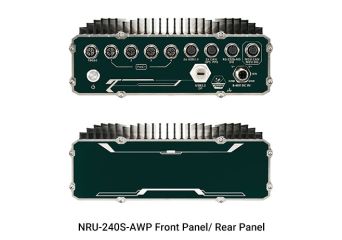

NRU-240S-AWP
Description
Technical Specification
| CPU | NVIDIA Jetson AGX Orin system-on-module (SOM), comprising NVIDIA Ampere GPU and Arm Cortex-A78AE CPU |
| RAM | 32GB/ 64GB LPDDR5 (JAO 32GB/ JAO 64GB) @ 3200 MHz on SOM |
| eMMC | 64GB eMMC 5.1 on SOM |
| Gigabit Ethernet | 5 |
| USB | 2x USB 2.0 1x USB 3.2 (Type C shared with DisplayPort) |
| CANBus | 2 |
| Serial Port | 1x RS-485/232 |
| miniPCIe | 1x full-size mini PCI Express socket for WiFi 6 or CAN 1x full-size mini PCI Express socket for GNSS or 4G LTE |
| 2,5" SDD | 2 |
| Slot M.2 | 1x M.2 3042/ 3052 B key for LTE/ 5G module with dual micro SIM support 1x M.2 2280 M key NVMe socket for NVMe SSD |
| Working temp. | -25°C ~ +60°C (30W TDP, with full function) |
