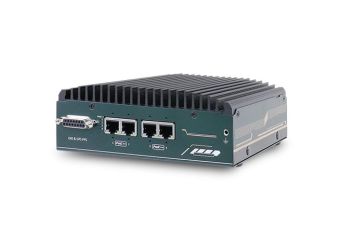

NRU-52S+ / NRU-52S
Rugged NVIDIA® Jetson Orin™ NX/ Xavier™ NX Edge AI Computer with 4x PoE++ Ports for Intelligent Video Analytics
- Powered by NVIDIA® Jetson Orin™ NX or Xavier™ NX SOM bundled with JetPack 5.1.1
- Rugged -25°C to 70°C fanless operation
- 4x IEEE 802.3bt PoE++ GbE ports with screw-lock
- 2x mini-PCIe sockets for WIFI/GNSS/NVMe/CAN modules
- 1x 3042/3052 M.2 B key socket for 4G/5G mobile communication
- 1x hardware configurable RS232/RS422/RS485 port
- 8V to 35V wide-range DC input with built-in ignition power control
- MIL-STD-810G and EN 50155 certified
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
NRU-52S+ / NRU-52S
Technical Specification
| NRU-52S+ | NRU-52S | |
| Processor | NVIDIA Jetson Orin NX SOM, comprising NVIDIA Ampere GPU and ARM Cortex CPU |
NVIDIA Jetson Xavier NX SOM, comprising NVIDIA Volta GPU and Carmel CPU |
| RAM | 8GB/ 16GB LPDDR5 (depends on chosen model) | 8GB/ 16GB LPDDR4x (depends on chosen model) |
| eMMC | - | 16GB |
| Bundled JetPack Version | JetPack 5.1.1 | JetPack 4.6.1 |
| VGA (DSub) | - | - |
| HDMI | - | - |
| Display Port | 1 | 1 |
| Audio | - | - |
| PoE++ | 4 | 4 |
| Mini PCIe | 1x for M.2 M 2242 NVMe (full-size) 1x for GNSS, V2X or CAN (full-size) |
1x for WiFi, NVMe (full-size) 1x for GNSS, V2X or CAN (full-size) |
| M.2 | 1x M.2 3042/ 3052 B key for 4G/5G module with dual SIM support |
1x M.2 3042/ 3052 B key for 4G/5G module with dual SIM support |
| CAN Bus | 1 | 1 |
| DIO | 1x GPS PPS input | 1x GPS PPS input |
| USB 3.1 | 2 | 2 |
| micro USB (OTG) | 1 | 1 |
| RS-232/422/485 | 1 | 1 |
| TPM | - | - |
| Working temp. | -25°C ~ +70°C | -25°C ~ +70°C |
